Dashcams, model S202

S202 4G AI Camera

Q: Does the S202 need an MDVR?

No. The S202 records to its own microSD card and has its own 4G modem, so it works on its own. An MDVR is for vehicles that need four or eight cameras on one recorder.

Q: Can one S202 run DMS and BSD together?

No. It is ordered with one optional algorithm: DMS for a camera that faces the driver, or BSD for one mounted on the side of the vehicle.

Q: What is the S202's ingress rating?

IP67: the housing is dust-tight and protected against temporary immersion in water. The S202 operates from -30 °C to +70 °C.

Q: How many hours of video does the S202 keep?

About 260 hours on a 512 GB card at the standard 4 Mbps for 1080p, and roughly twice that in H.265. Loop recording then overwrites the oldest footage.

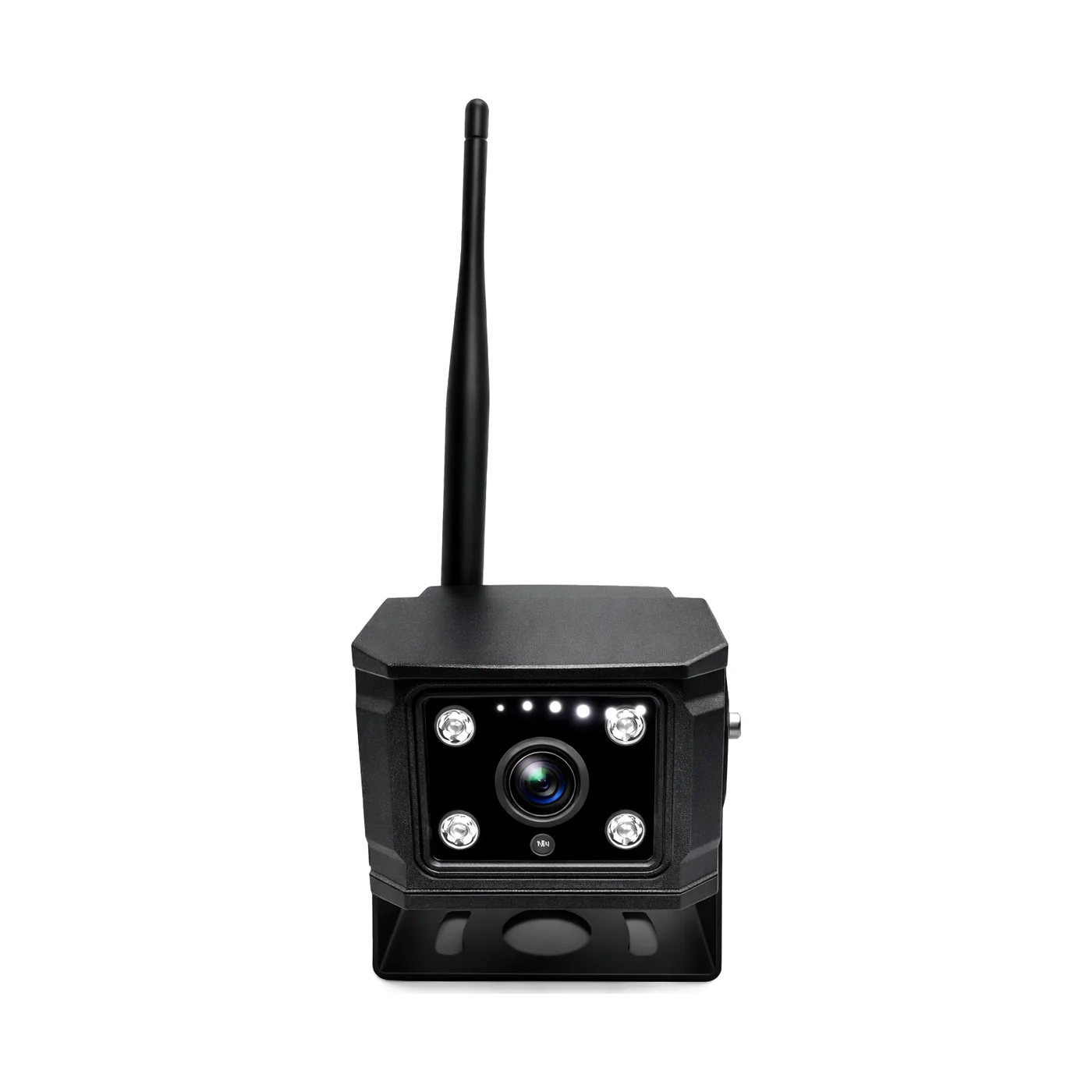

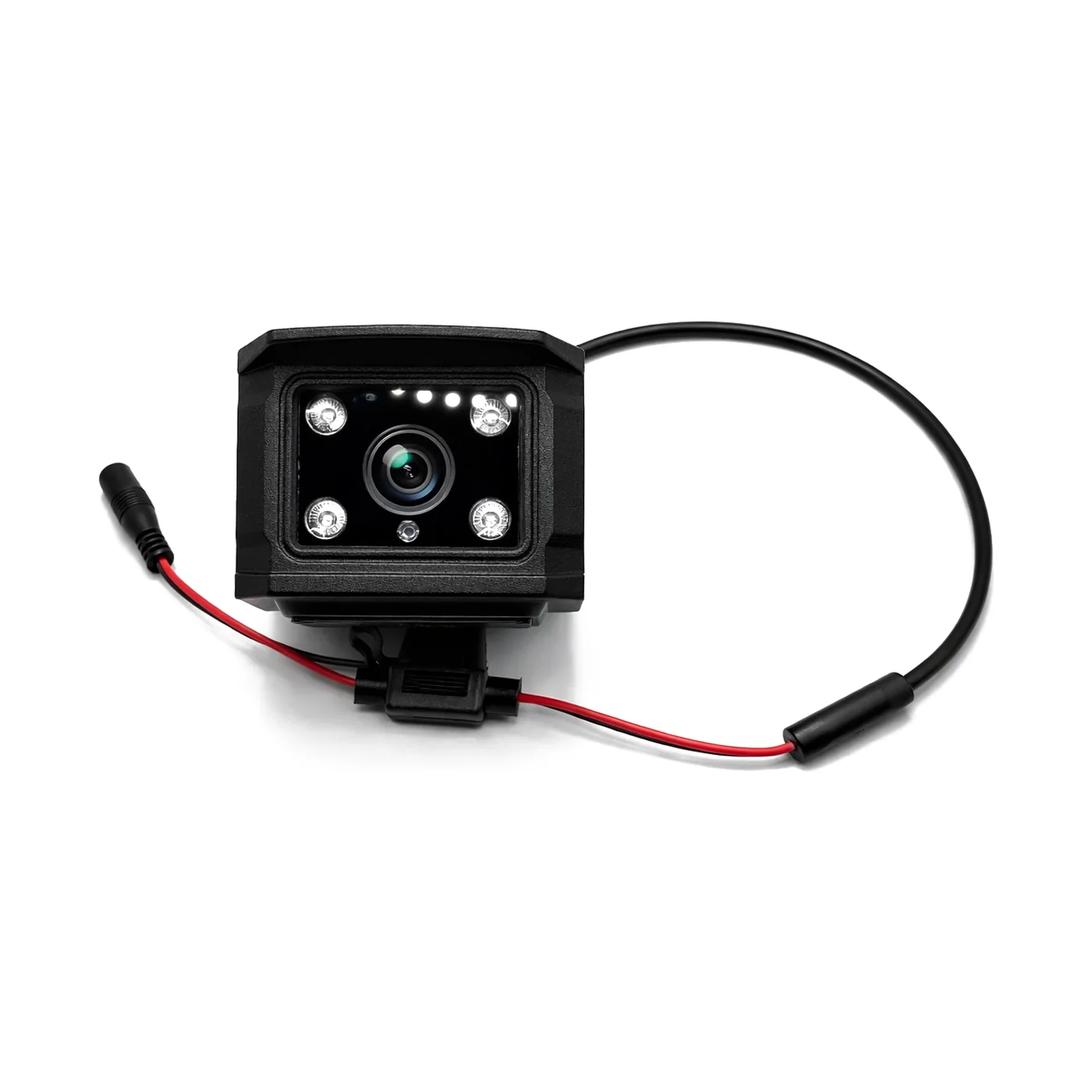

Sealed single-channel 1080p 4G camera with optional DMS or BSD

The S202 is a 4G camera in a sealed IP67 housing. It records one 1080p channel in H.264 or H.265, with infrared or white-light night vision, to a microSD card of up to 512 GB. DMS or BSD is optional. It has a Cat 1 modem, two-way voice, 9–36 V input and JT/T 808 and 1078 support.

Video: 1080p
Cameras: 1
Connectivity: 4G, GPS
AI functions: Optional: DMS, BSD

Ask on WhatsApp

Prices depend on volume and configuration. Samples available for evaluation.

S202 at a glance

Camera, recorder and 4G in one
Records one 1080p channel to its own card and reports over 4G, with no separate recorder.
IP67, -30 °C to +70 °C
A sealed housing of 87 × 82.5 × 81 mm, bracket included, for mounting outside the cab.
DMS or BSD
Ordered with one optional algorithm: driver monitoring or blind-spot detection.
About 260 hours on 512 GB
One 1080p channel at the standard 4 Mbps; H.265 roughly doubles that.

Specifications

S202 4G AI Camera. Specifications can change with firmware and configuration; confirm with sales for your order.

Checked against our product specifications, October 2026.

Downloads

S202 product sheet PDF, generated from this page

Video

Resolution	1080p (1920 × 1080) at up to 30 fps, one channel
Codec	H.264 / H.265, 8 quality levels (1–12 Mbps)
Night vision	Infrared or white light, chosen at order; IR-cut filter

AI safety

DMS (optional)	Fatigue, smoking, blocked camera, unsafe driving behaviour
BSD (optional)	Pedestrians and vehicles in the blind zone
Sensor	3-axis accelerometer

Connectivity

Network	4G LTE Cat 1 (TDD and FDD); no Wi-Fi
4G bands	Full-band version; European and Latin American versions on request
Positioning	GPS and BeiDou, external antenna
Platform	Traqcare app and web platform
Protocols	JT/T 808 (2013 and 2019), JT/T 1076, JT/T 1078
Voice	Two-way voice; built-in microphone and 2 W speaker
Updates	Remote, over FTP

Storage

Memory card	microSD up to 512 GB, Class 10 or faster
Recording	Continuous, ignition-triggered and alarm recording

Power & build

Input voltage	9–36 V; overload, under-voltage, short-circuit and reverse-polarity protection
Power draw	< 5 W
Operating temperature	-30 °C to +70 °C
Ingress protection	IP67
Size and weight	87 × 82.5 × 81 mm with bracket, 200 g
Operating system	Linux
Security	User and administrator passwords

Interfaces

Alarm input	1, on the functional edition
Output	1, for a fuel or power cut-off relay, on the functional edition
Serial	1 × RS232, on the functional edition

The S202 is one camera, one recorder and one 4G modem in a sealed housing of 87 × 82.5 × 81 mm, bracket included. It records a single 1080p channel at up to 30 fps in H.264 or H.265 to its own microSD card and reports over 4G, so it needs no separate recorder. The housing is rated IP67 and works from -30 °C to +70 °C.

What the S202 does

Works as a driver camera or a blind-spot camera. It is ordered with one optional algorithm. DMS detects fatigue, smoking, a blocked camera and unsafe driving behaviour. BSD detects pedestrians and vehicles in the blind zone.
Sees in the dark. Night vision is infrared or white light, chosen when you order, with an IR-cut filter for daytime colour.
Streams and talks over 4G. Live video, playback and two-way voice run over the Cat 1 modem to the Traqcare app and web platform. There is no Wi-Fi.
Reports to other platforms. JT/T 808, in its 2013 and 2019 editions, JT/T 1076 and JT/T 1078 are supported.
Connects a switch and a relay. The functional edition has one alarm input, one output for a fuel or power cut-off relay and an RS232 port. The basic edition has none of these.

Installation

9–36 V input with overload, under-voltage, short-circuit and reverse-polarity protection. Power draw is under 5 W.

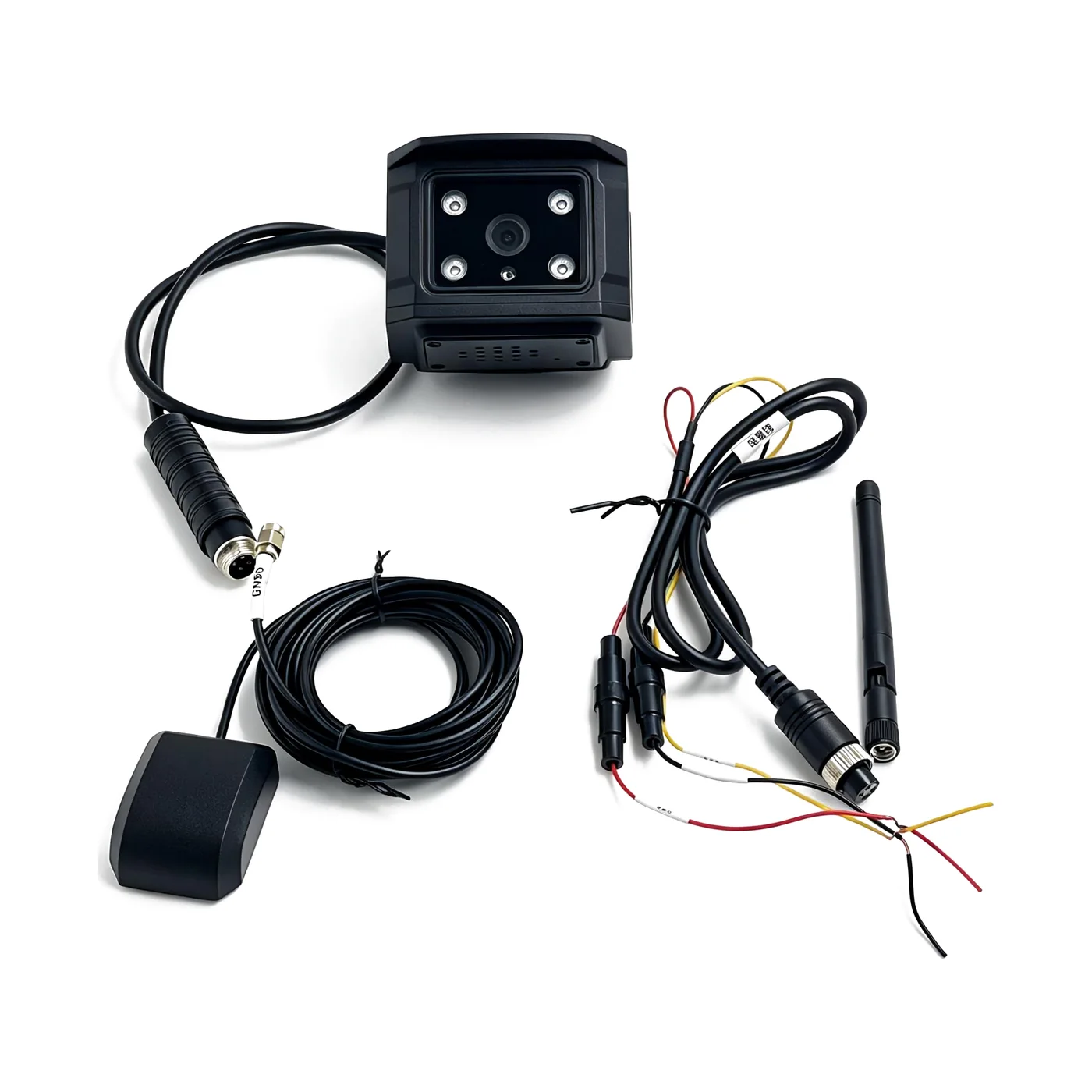

The GPS and 4G antennas screw on to the back of the housing.
Fit a SIM and a microSD card of Class 10 or faster, up to 512 GB. One 1080p channel at the standard 4 Mbps keeps about 260 hours on 512 GB.
Eight quality levels set the bitrate between 1 and 12 Mbps.
Firmware is updated remotely over FTP.

For road and cabin lenses in one windscreen unit, see the D9. For four cameras on one recorder, see the WD12.

S202 questions

Does the S202 need an MDVR?

No. The S202 records to its own microSD card and has its own 4G modem, so it works on its own. An MDVR is for vehicles that need four or eight cameras on one recorder.

Can one S202 run DMS and BSD together?

No. It is ordered with one optional algorithm: DMS for a camera that faces the driver, or BSD for one mounted on the side of the vehicle.

What is the S202's ingress rating?

IP67: the housing is dust-tight and protected against temporary immersion in water. The S202 operates from -30 °C to +70 °C.

How many hours of video does the S202 keep?
