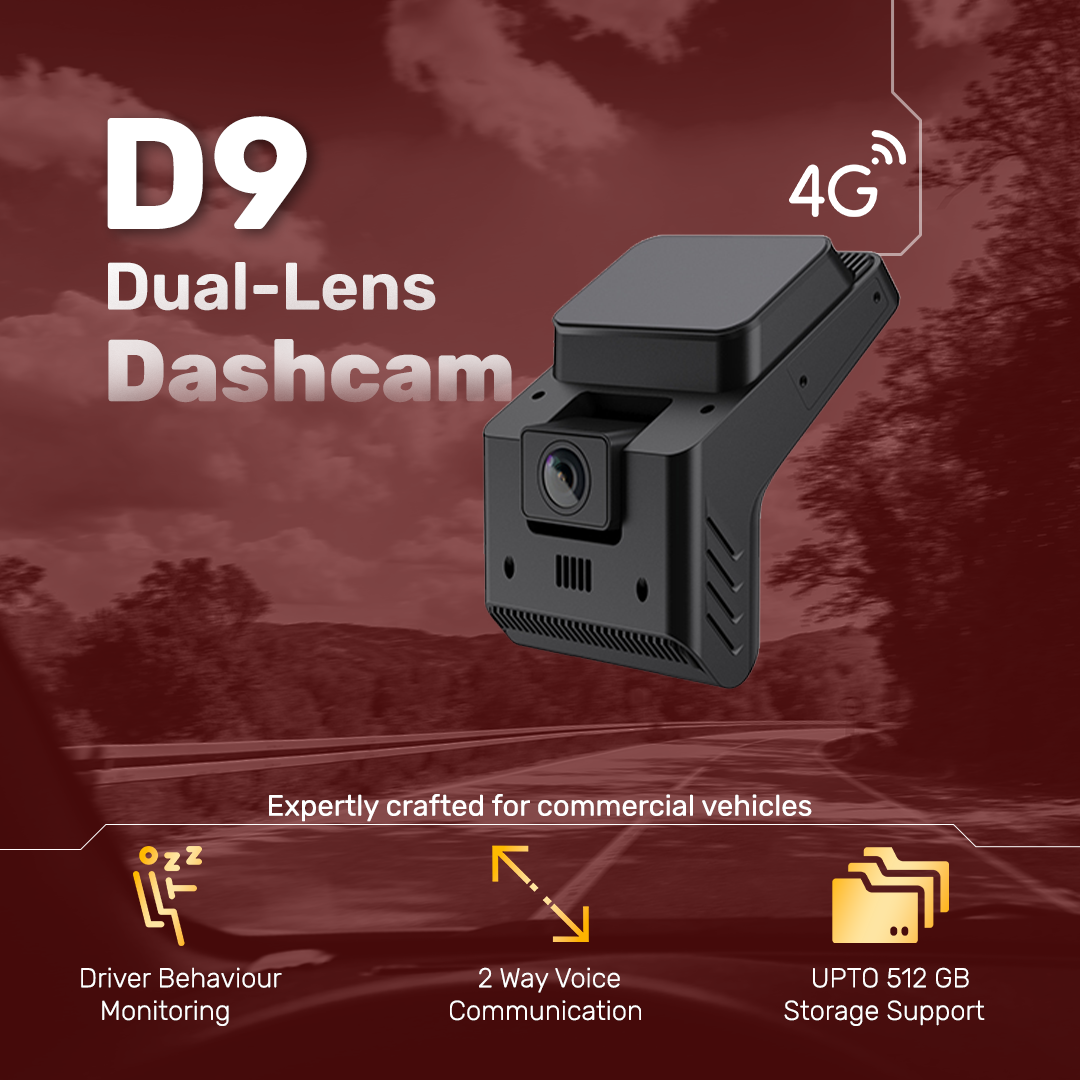

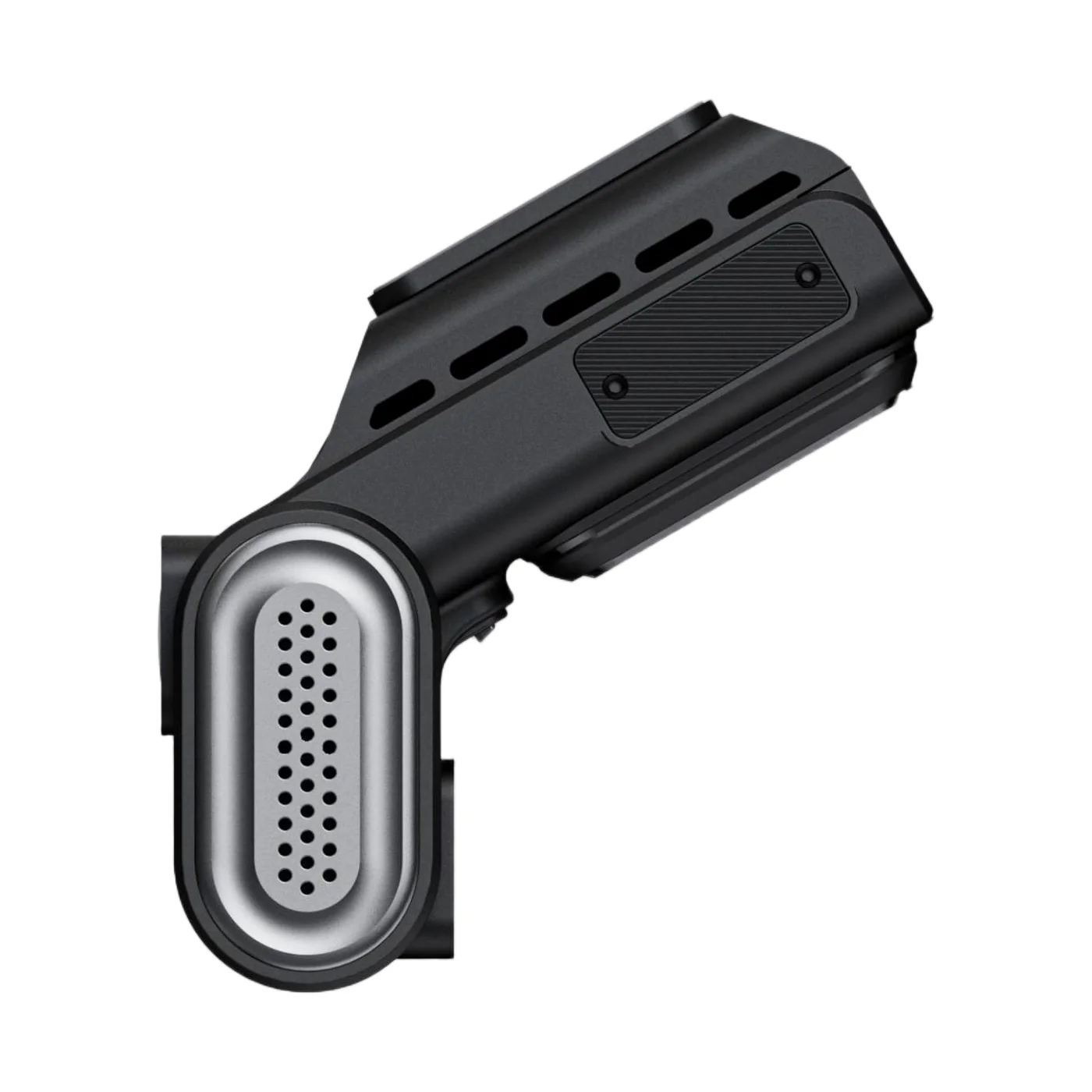

D9 Dual-Lens Dashcam

4G AI dashcam: 1080p road and cabin lenses, up to four cameras

The D9 is a 4G AI dashcam with two built-in 1080p lenses: a 135° road lens and a 110° infrared cabin lens. It accepts two more 720p cameras, runs ADAS and DMS alerts above 30 km/h, records H.264 or H.265 to a microSD card of up to 512 GB and runs on 9–36 V.

Video: 1080p
Cameras: 2 built in, up to 4
Connectivity: 4G, Wi-Fi, GPS
AI functions: ADAS, DMS

Ask on WhatsApp

Prices depend on volume and configuration. Samples available for evaluation.

D9 at a glance

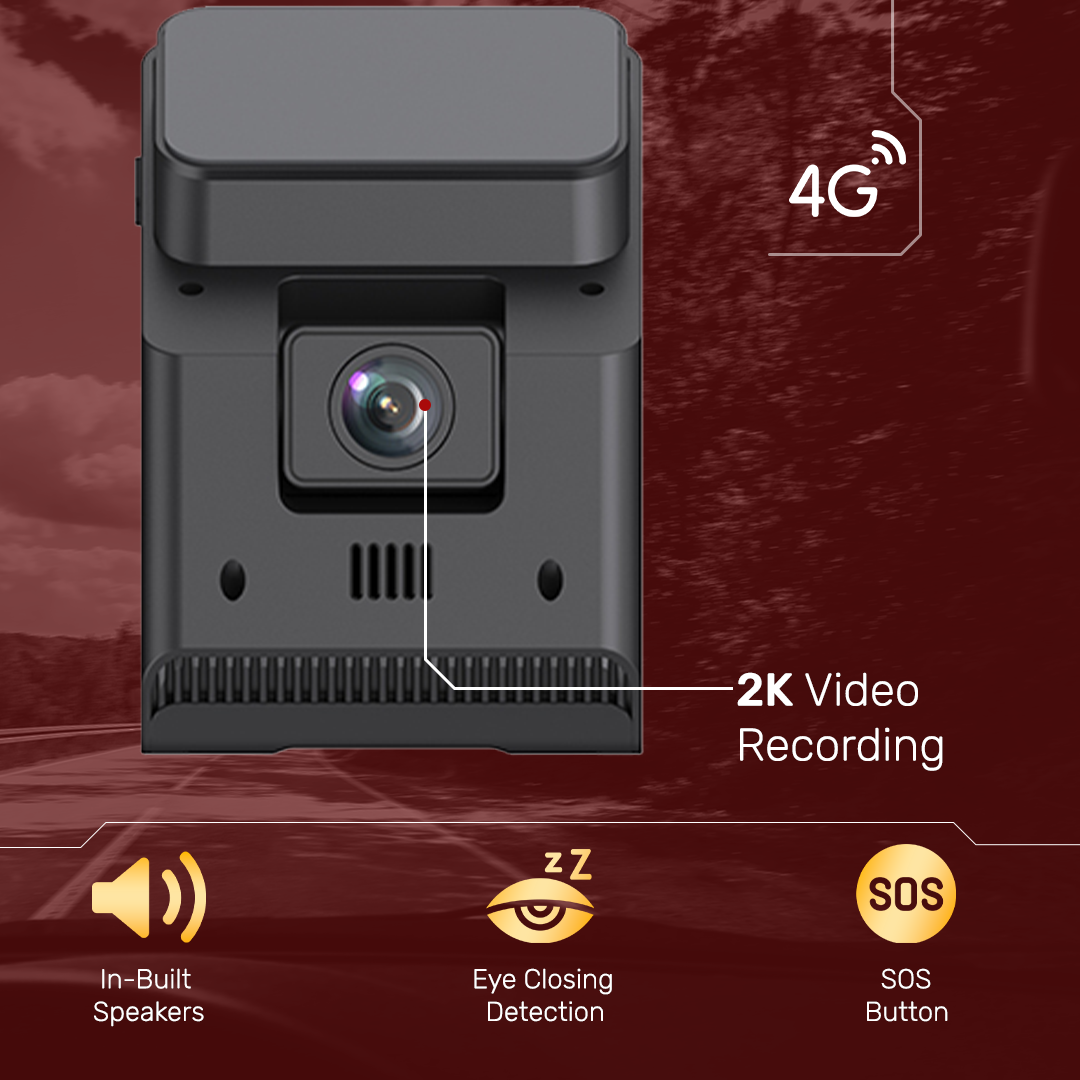

Road and cabin in one unit
Two built-in 1080p lenses record the road and, with infrared, the driver at the same time.
ADAS and DMS
Collision, lane, pedestrian and following-distance warnings plus yawning, closed-eye, distraction and smoking alerts, above 30 km/h.
Expandable to four cameras

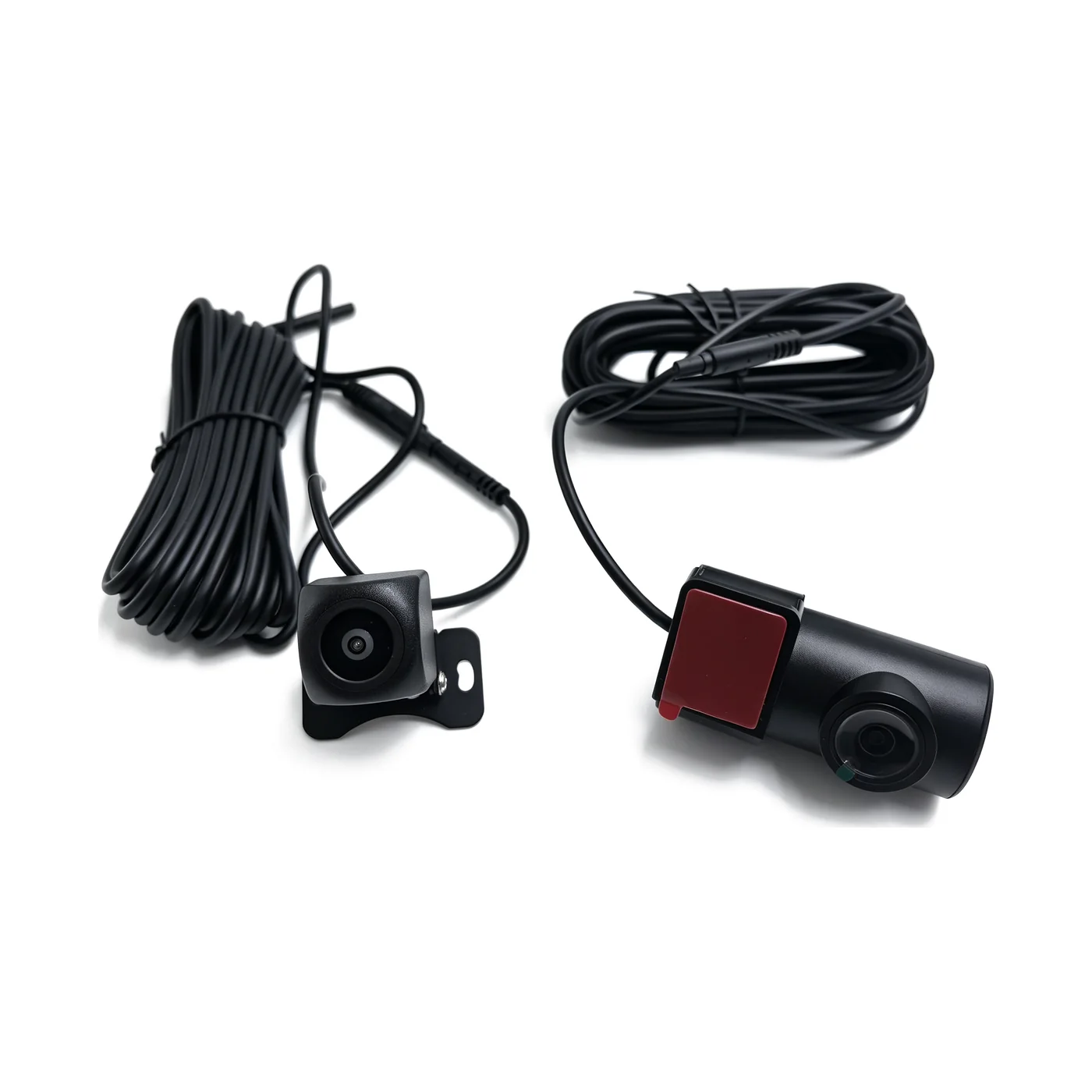

Add up to two external 720p cameras for the rear or sides.
About 130 hours on 512 GB
Both 1080p lenses at the standard 4 Mbps each. H.265 roughly doubles that.

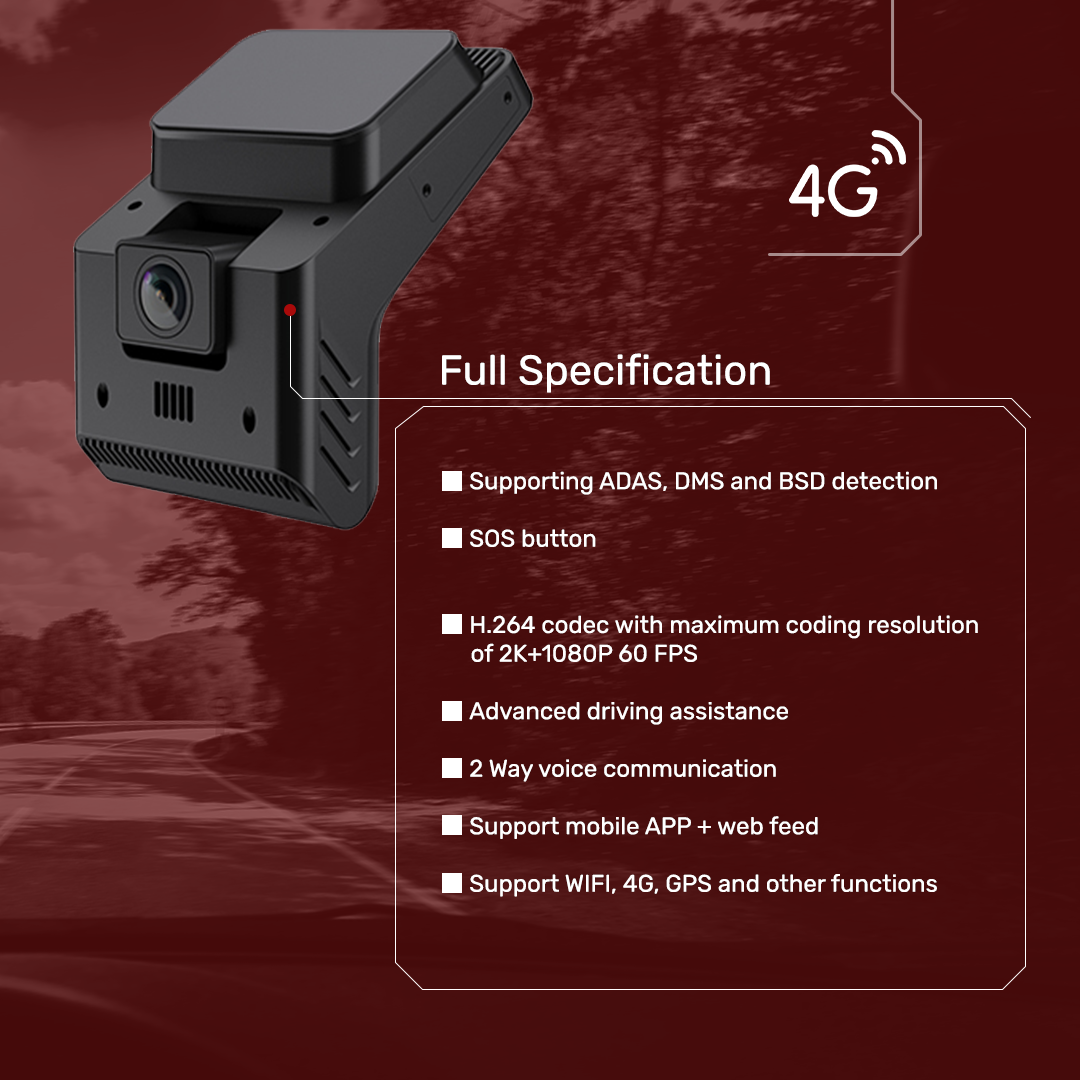

Specifications

D9 Dual-Lens Dashcam. Specifications can change with firmware and configuration; confirm with sales for your order.

Checked against our product specifications, October 2026.

Downloads

D9 product sheet PDF, generated from this page
D9 installation and set-up guide Wiring, connecting to Traqcare, AI calibration, troubleshooting

Video

Cameras	2 built in, up to 4
Built-in lenses	Road 1080p (135°) and cabin 1080p infrared (110°)
External cameras	Up to 2 × 720p (120°), for the rear or sides; one rear camera with a 5 m cable is in the box
Codec	H.264 / H.265
Streams	Main and sub-stream, each 1080p, 720p, D1 or CIF, set remotely

AI safety

ADAS	Forward collision, lane departure, pedestrian, following distance and front-vehicle-start alerts
DMS	Yawning, closed eyes, distraction, smoking, blocked camera
Alert speed	Alerts are active above 30 km/h
Calibration	In the app; progresses while driving above 20 km/h
G-sensor	6-axis

Connectivity

Network	4G Cat 4 (Quectel EC200A), Wi-Fi hotspot 2.4 / 5.8 GHz
4G bands	Europe and Asia version: FDD B1/3/5/7/8/20/28, TDD B38/40/41. Latin America and Australia version: FDD B1/2/3/4/5/7/8/28, TDD B40. North America version: FDD B2/4/5/12/13/14/66/71
Positioning	GPS and BeiDou, external antenna, accuracy under 10 m
Platform	Traqcare app and web platform
Protocols	JT/T 808 (2013 and 2019), JT/T 905, JT/T 1078; two platforms at once
Voice	Two-way voice communication

Storage

Memory card	microSD up to 512 GB, Class 10 or faster; files are encrypted on the card
Recording	Loop recording in 1, 3 or 5 minute files; supercapacitor power-loss protection
Ignition off	Remote viewing on constant power

Power & build

Input voltage	9–36 V
Operating temperature	-20 °C to +70 °C
Audio	Built-in speaker and microphone
In the box	Dashcam, power cable, external GPS antenna, rear camera with 5 m cable, bracket, manual

Interfaces

Serial	1 × RS232
Emergency	SOS input
Output	1 × I/O (relay for fuel or power cut-off, on request)
SIM	Micro SIM

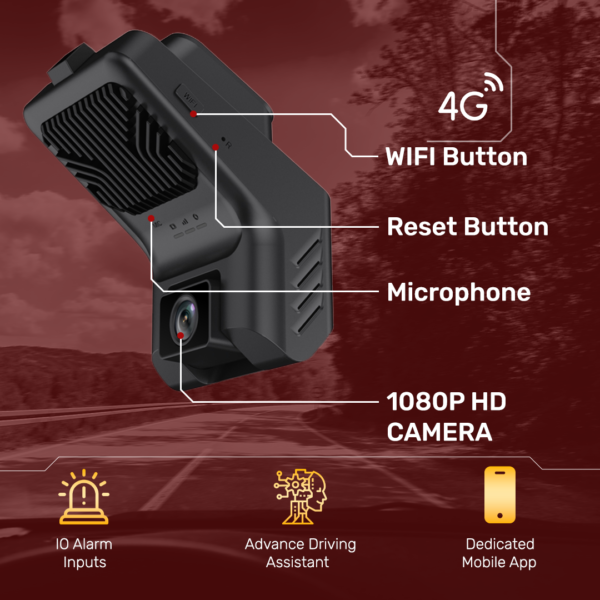

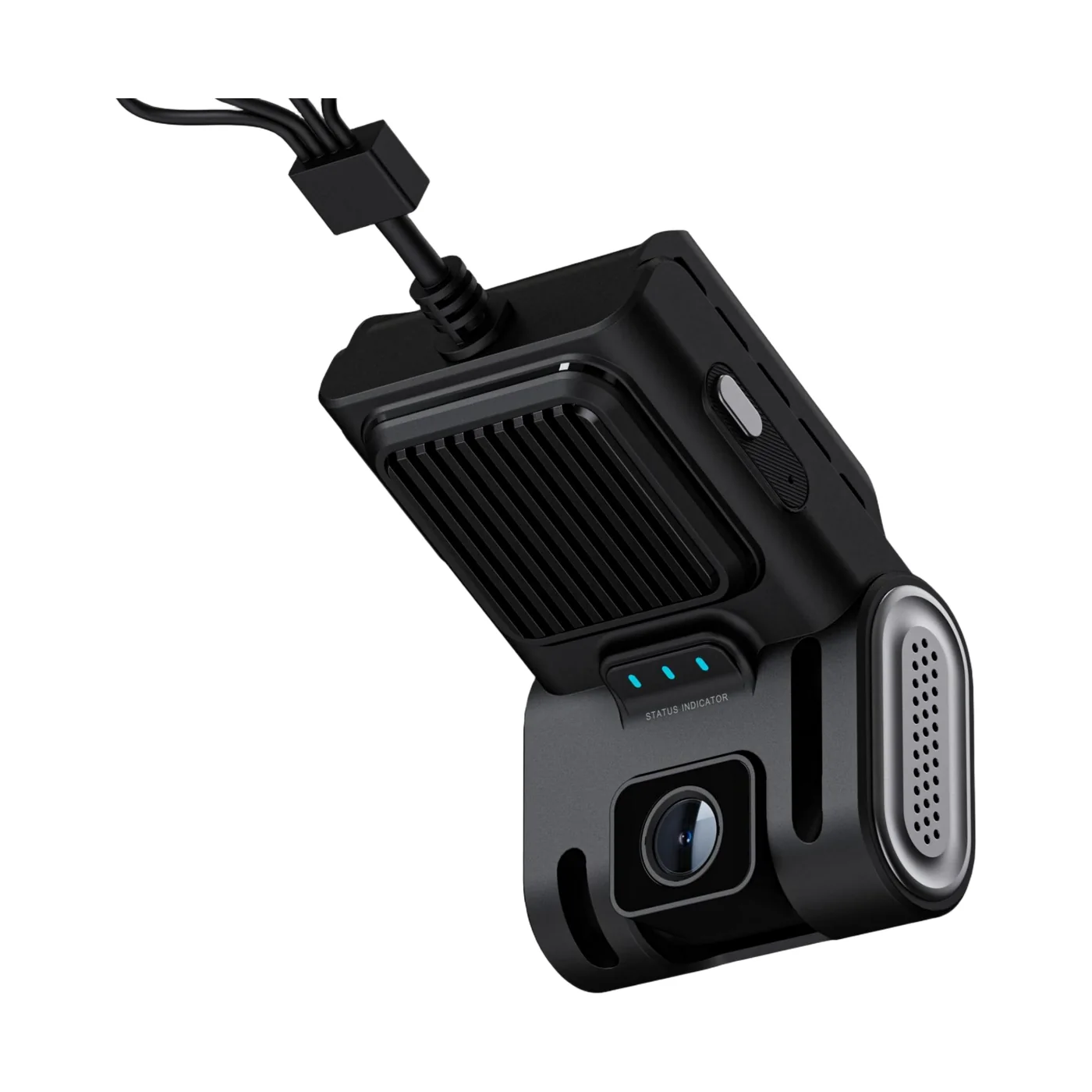

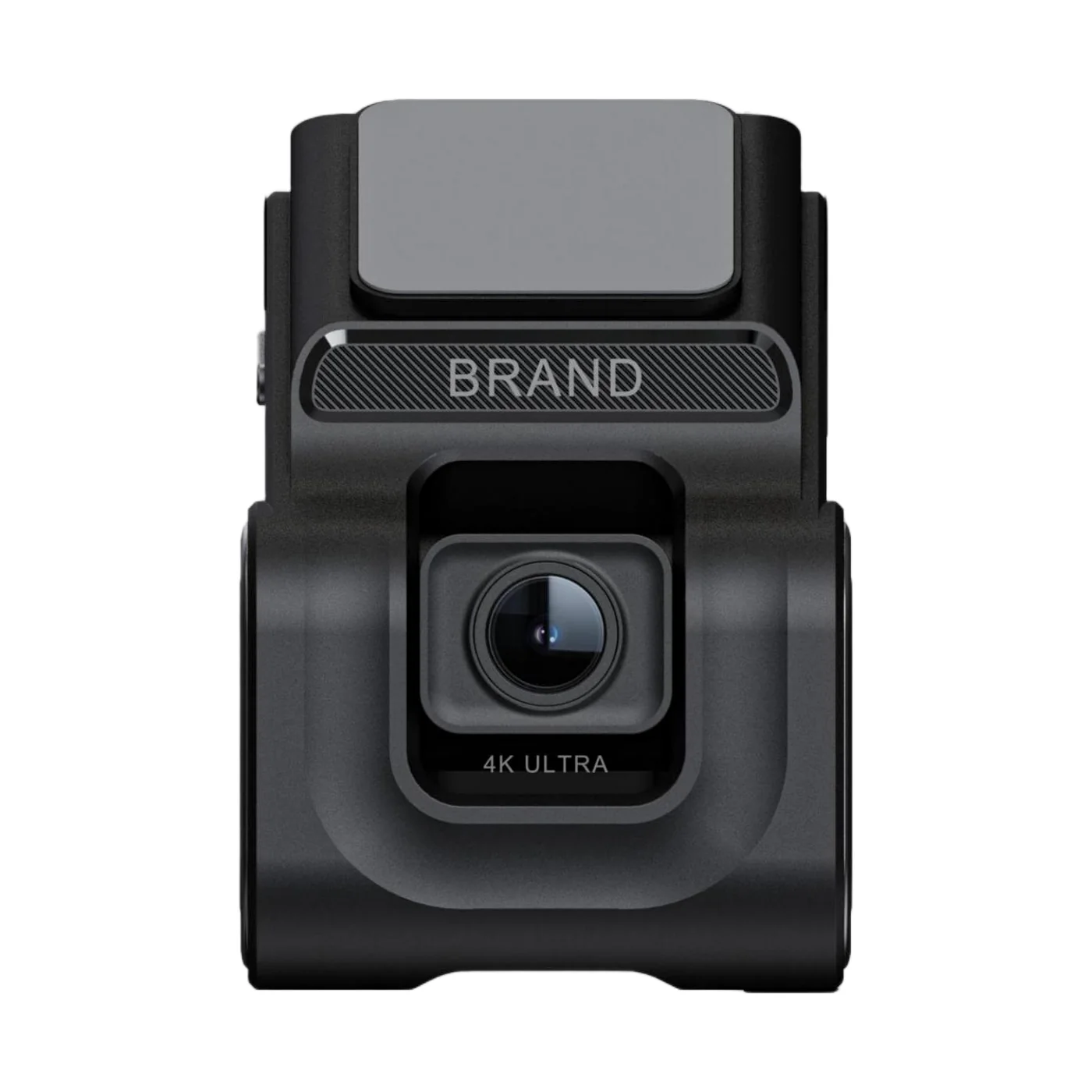

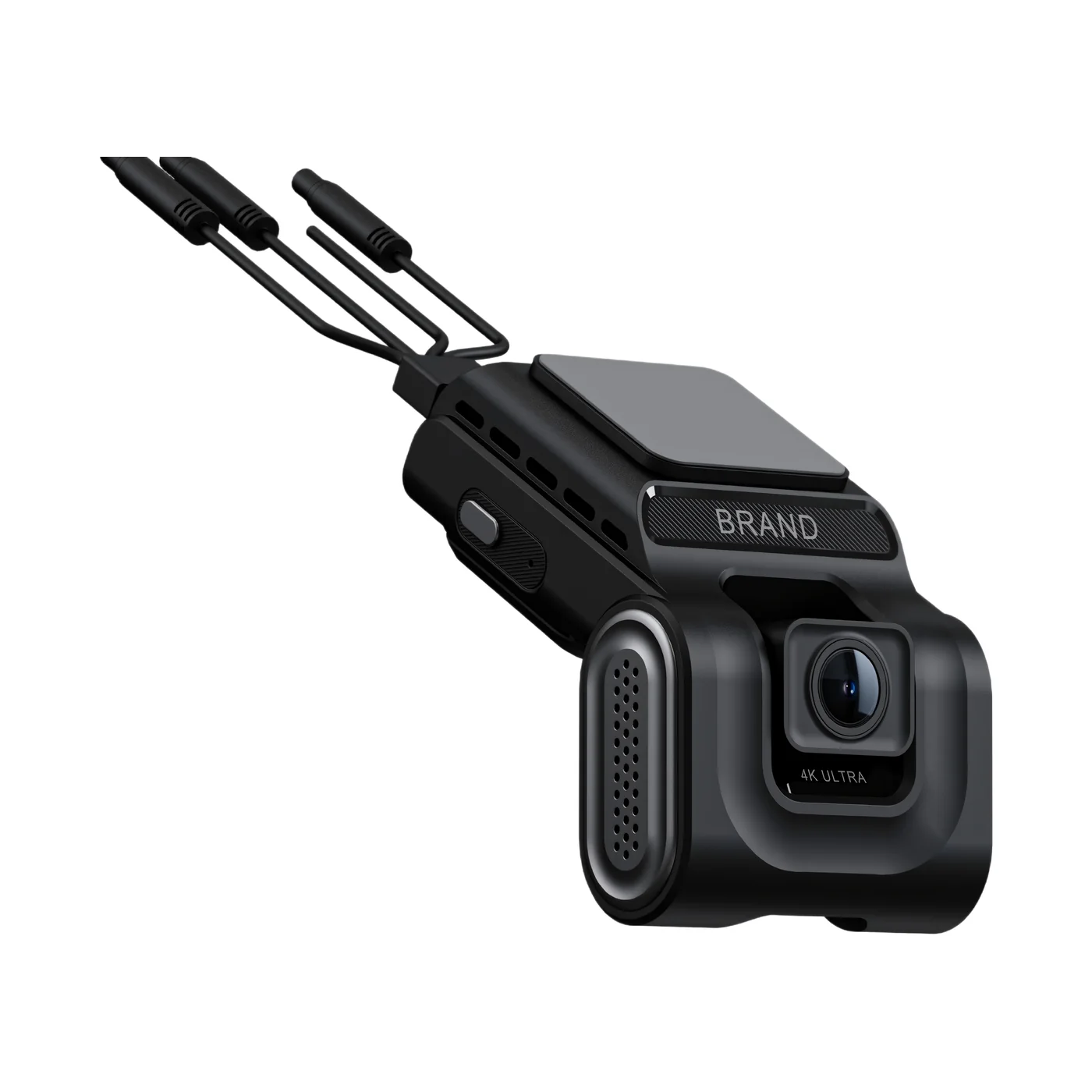

The D9 puts a road lens, an infrared cabin lens, an AI processor, GPS and a 4G modem in one windscreen unit. Both built-in lenses record 1080p, and two external 720p cameras can be connected for the rear or the sides, so one device records two, three or four channels. One rear camera, on a 5-metre cable, is in the box. A supercapacitor closes the last file safely if power is cut.

What the D9 does

Records both sides of the windscreen. Road and cabin video are stored together with GPS position and time, so a claim can be checked against what happened outside and inside the cab.
Warns the driver. ADAS covers forward collision, lane departure, pedestrians, following distance and the vehicle ahead moving off. DMS detects yawning, closed eyes, distraction, smoking and a blocked camera. Each alert sounds in the cab and is logged. Alerts are active above 30 km/h.
Keeps dispatch in contact. Two-way voice uses the built-in speaker and microphone, and the SOS input sends an emergency alert to the platform.
Streams over 4G. Managers watch live video, download clips and follow the vehicle in the Traqcare app or web platform. The main stream and the sub-stream can each be set to 1080p, 720p, D1 or CIF remotely, which controls data use. On constant power the D9 can also be viewed with the ignition off.
Reports to other platforms. JT/T 808 (2013 and 2019 editions), JT/T 905 and JT/T 1078 are supported, and the D9 can report to two platforms at the same time.

Installation

9–36 V input: the same unit fits 12 V vans and 24 V trucks.
Mount behind the rear-view mirror, road lens forward and cabin lens towards the driver, then connect any external cameras.
Calibrate ADAS and DMS in the app after mounting. Calibration progresses only while driving above 20 km/h, so finish it on a road test.
Fit a micro SIM and a microSD card of Class 10 or faster. The 4G modem ships in three regional band versions, listed in the specifications, so tell us the country of use.
An RS232 port and an I/O output connect a serial accessory or a relay for remote fuel or power cut-off. Say so when ordering if you need them.

The D9 covers the road and the driver without the cabling of an MDVR. For four 1080p inputs on dual SD cards, see the WD12 MDVR.

Fleet setups that use the D9

D9 questions

What do the D9's two lenses record?

The front lens records the road in 1080p with a 135° view. The second lens faces the cabin, records 1080p with a 110° view and has infrared night vision for driver monitoring.

Can I add more cameras to the D9?

Yes. The D9 accepts up to two external 720p cameras, for example a rear camera and a side camera, for three or four channels in total.

How many hours of video does the D9 keep?

With both 1080p lenses recording at the standard 4 Mbps each, a 512 GB card holds about 130 hours before the oldest footage is overwritten, and about 76 hours with two external 720p cameras added. Recording in H.265 roughly doubles both figures.

Which countries does the D9's 4G modem cover?

The D9 has a Cat 4 modem and ships in three band versions: Europe and Asia (FDD B1/3/5/7/8/20/28, TDD B38/40/41), Latin America and Australia (FDD B1/2/3/4/5/7/8/28, TDD B40) and North America (FDD B2/4/5/12/13/14/66/71). Tell us the country and carrier and we supply the matching version.
