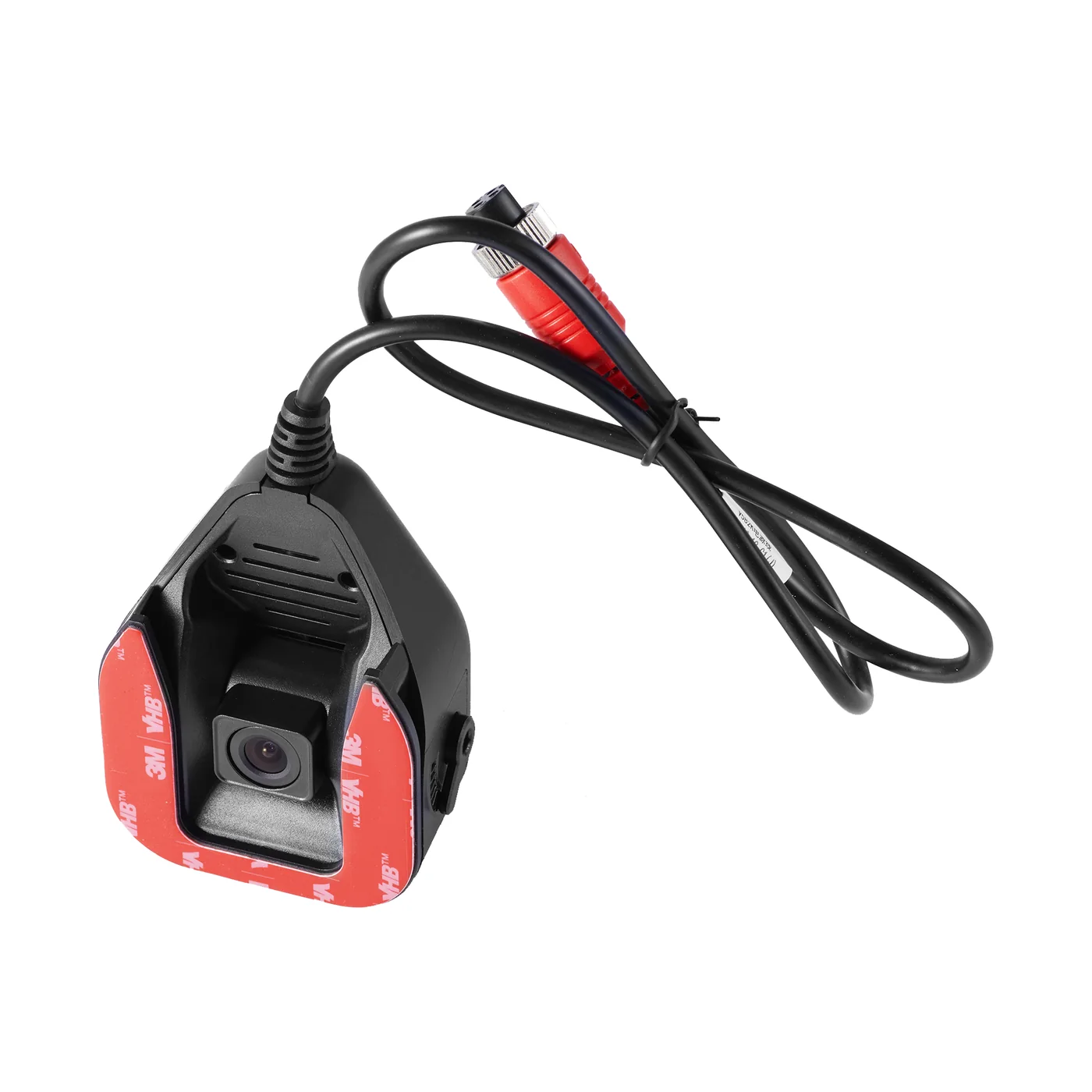

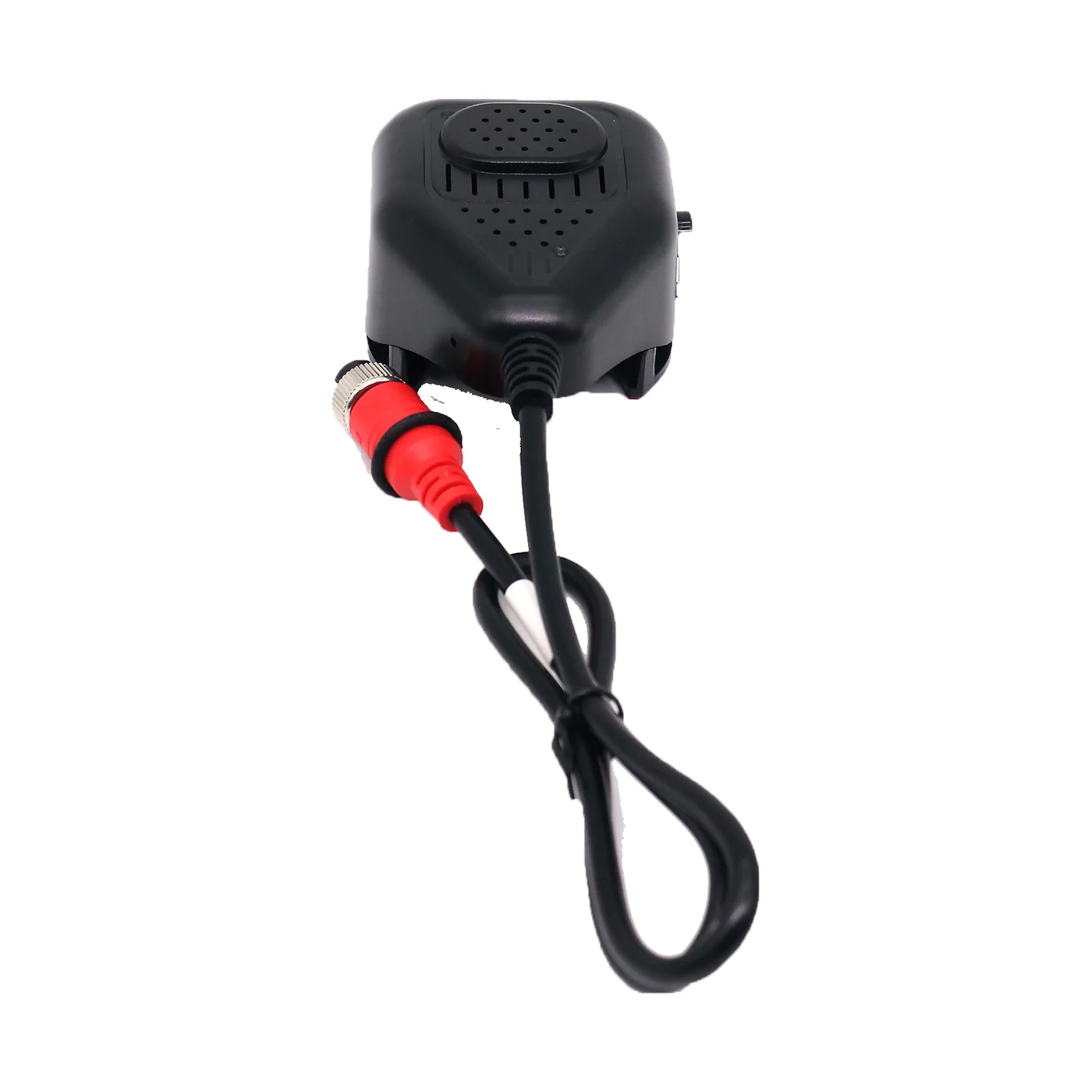

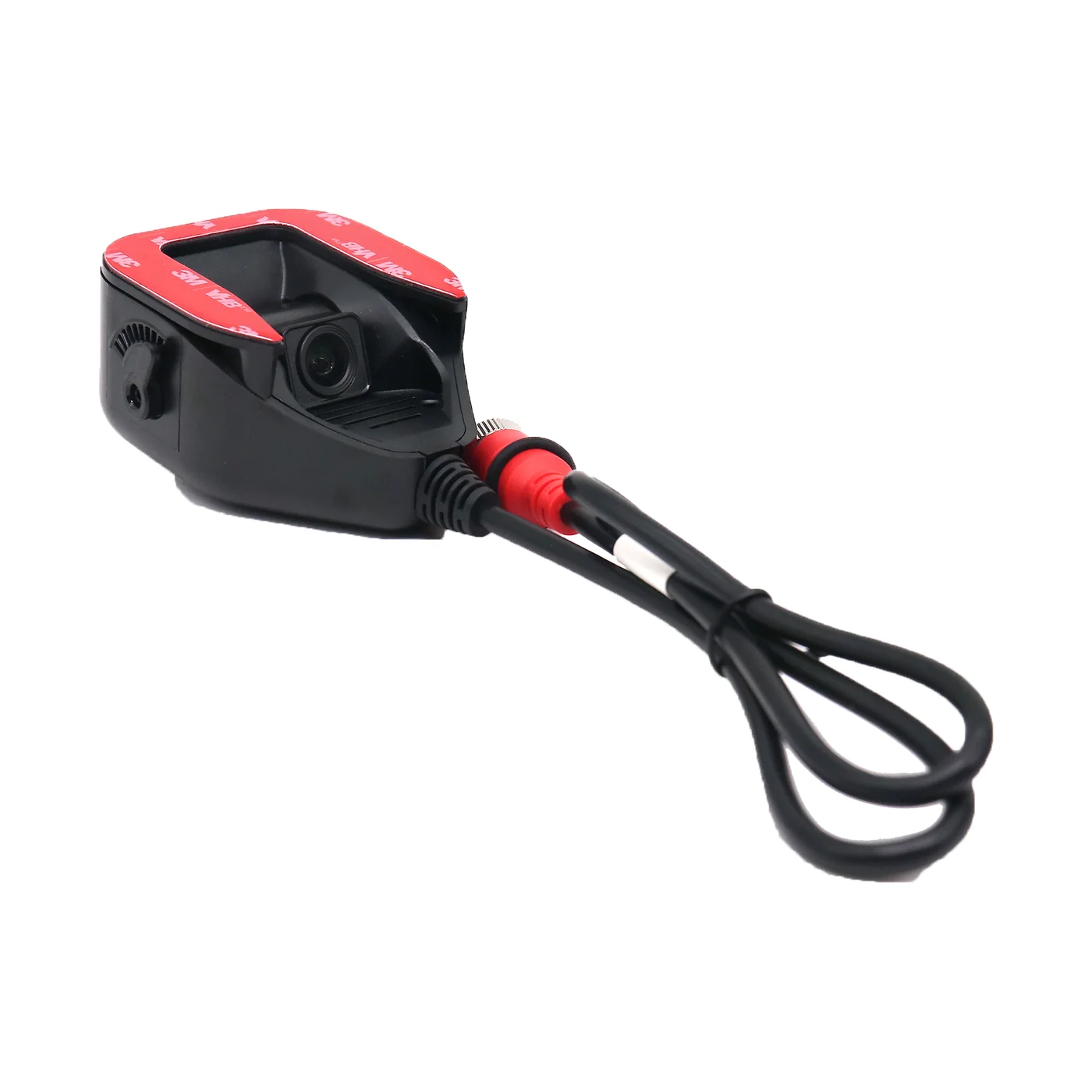

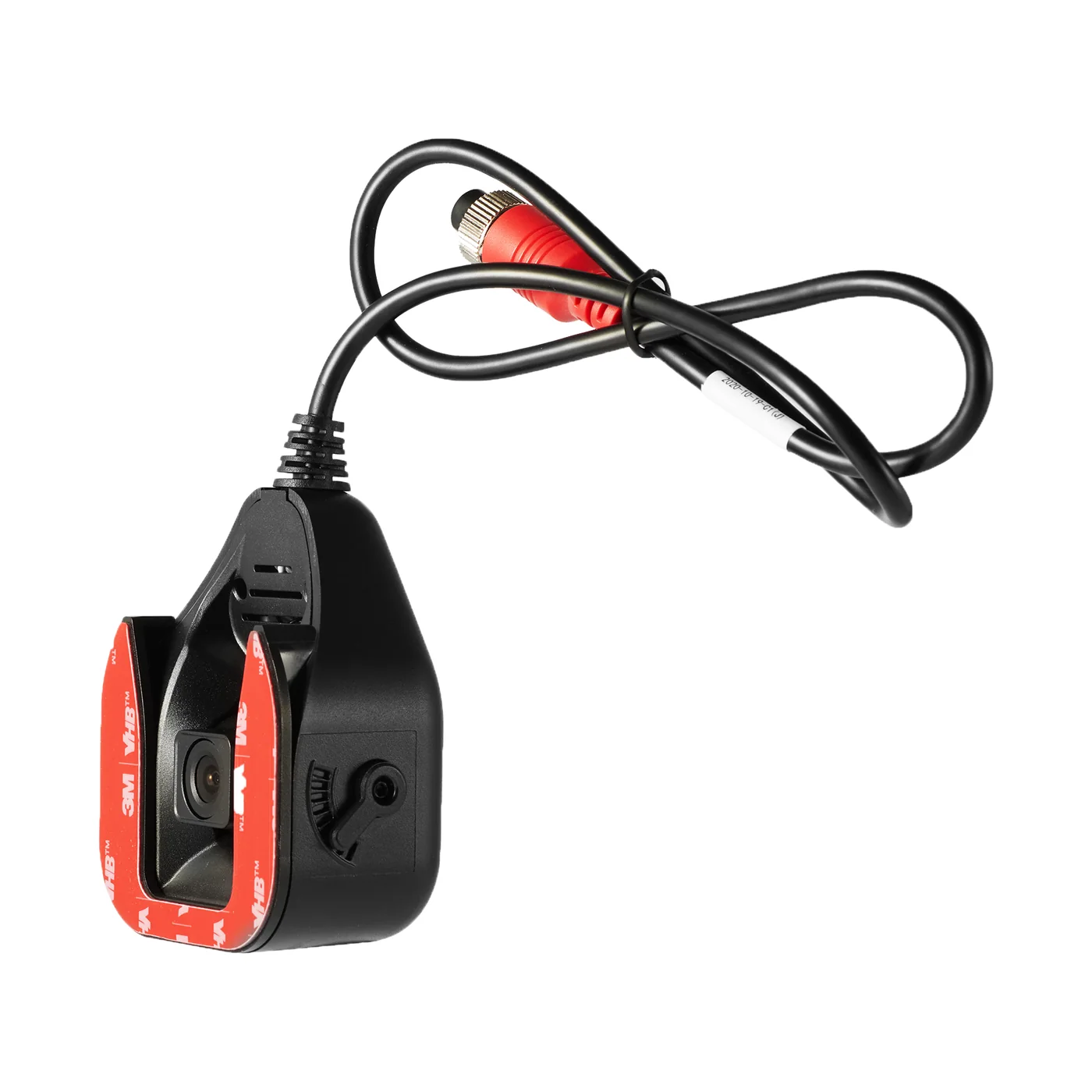

ADAS Camera for MDVRADAS Camera for MDVR, view 2ADAS Camera for MDVR, view 3ADAS Camera for MDVR, view 4ADAS Camera for MDVR, view 5

MDVR cameras, model ADAS-CAM

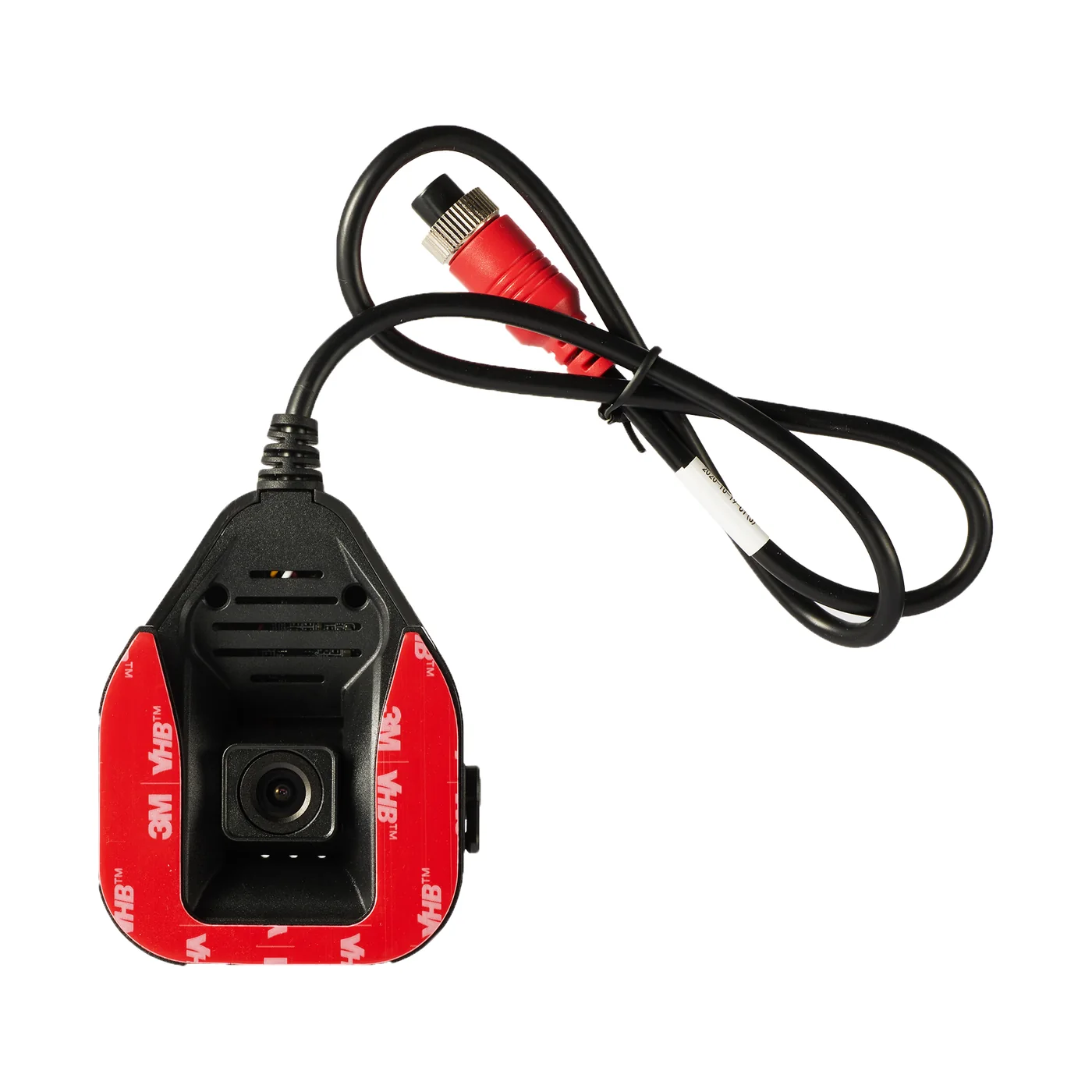

ADAS Camera for MDVR

Road-facing 1080p AI camera with lane, collision and pedestrian alerts

The ADAS Camera is a road-facing 1080p AI camera that connects to an MDVR. It gives lane-departure warnings above a speed you set, forward-collision alerts with adjustable sensitivity and pedestrian detection below 50 km/h. It runs on 12–24 V from -20 °C to 70 °C and records through the MDVR.

Video
1080p
Cameras
1
AI functions
ADAS
Ask on WhatsApp

Prices depend on volume and configuration. Samples available for evaluation.

ADAS-CAM at a glance

  • Lane and collision alerts

    Lane-departure warnings above a set speed, and forward-collision warnings with adjustable sensitivity.

  • Pedestrian detection

    Detects pedestrians ahead at speeds below 50 km/h.

  • Records through the MDVR

    Alerts are logged with video, GPS position and time alongside the recorder's other cameras.

Specifications

ADAS Camera for MDVR. Specifications can change with firmware and configuration; confirm with sales for your order.

Downloads

Video

Resolution1920 × 1080
Sensor1/2.9-inch CMOS
Viewing angle120°–170°, adjustable
Night visionYes

AI safety

Lane departure warningAbove a speed threshold you set
Forward collision alertAdjustable sensitivity
Pedestrian detectionBelow 50 km/h
Speed-limit indicatorLimit set by the operator

Storage

RecordingThrough the connected MDVR

Power & build

Input voltage12–24 V
Operating temperature-20 °C to 70 °C

Interfaces

Alarm output200 mA

The ADAS Camera adds forward-collision, lane-departure and pedestrian warnings to an MDVR system. It faces the road from the top of the windscreen, and the MDVR stores its video and the event log.

What it detects

  • Lane departure. Warns when the vehicle drifts out of its lane above a speed threshold you set, so slow manoeuvres do not trigger it.
  • Forward collision. Warns when the gap to the vehicle ahead closes too quickly. The sensitivity is adjustable.
  • Pedestrians. Detects pedestrians ahead at speeds below 50 km/h.
  • Speed limit. An indicator reminds the driver of the limit you set.

Every alert is logged by the recorder with its video and time, and with the GPS position when the recorder has GPS.

Installation

  • The camera has no memory card. It records through an MDVR, which also stores the event log.
  • Mount it high on the windscreen, centred and level. The viewing angle adjusts from 120° to 170° to suit the vehicle.
  • An alarm output (200 mA) can drive an external buzzer or indicator.
  • The cable and connector differ by recorder, so state your MDVR model when you order.

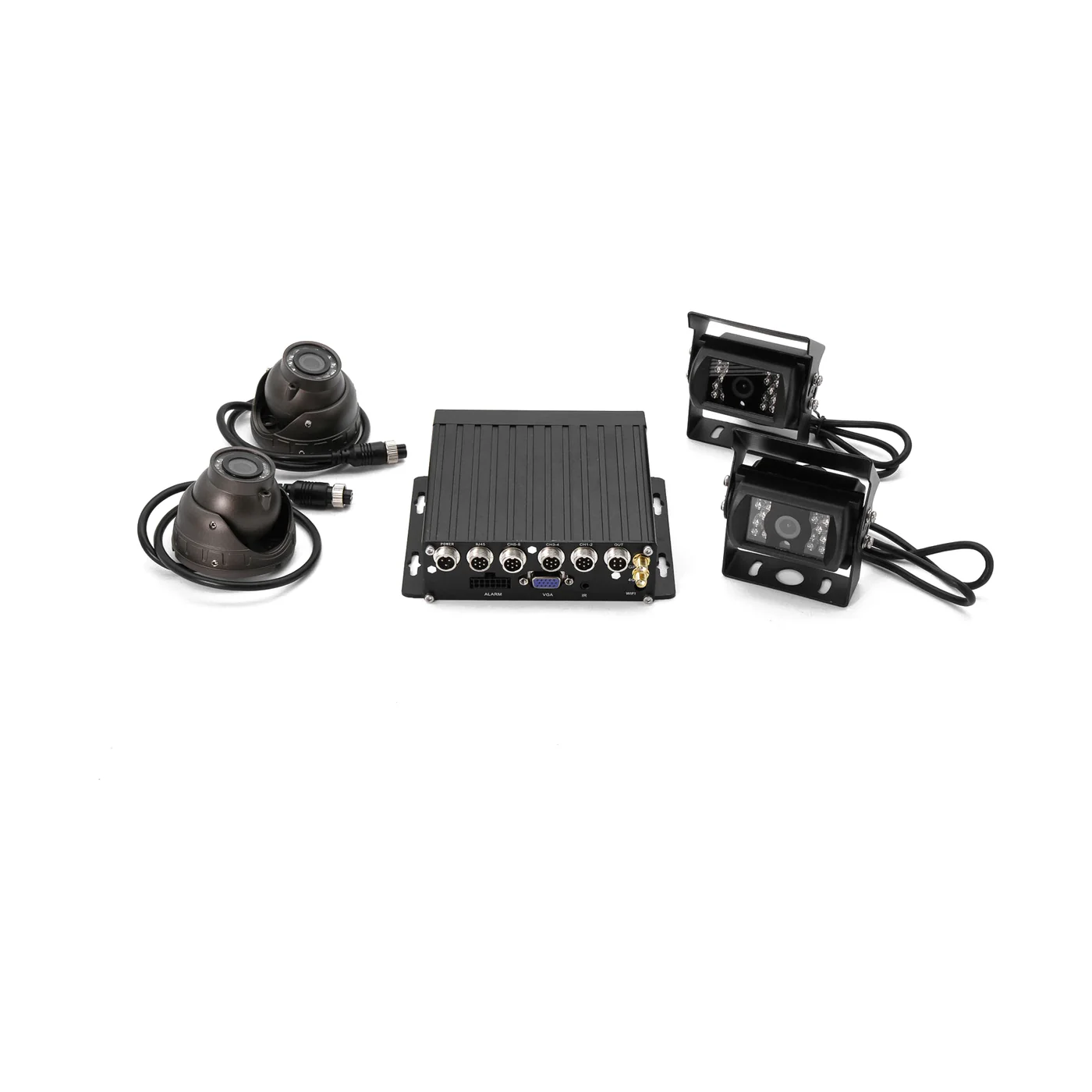

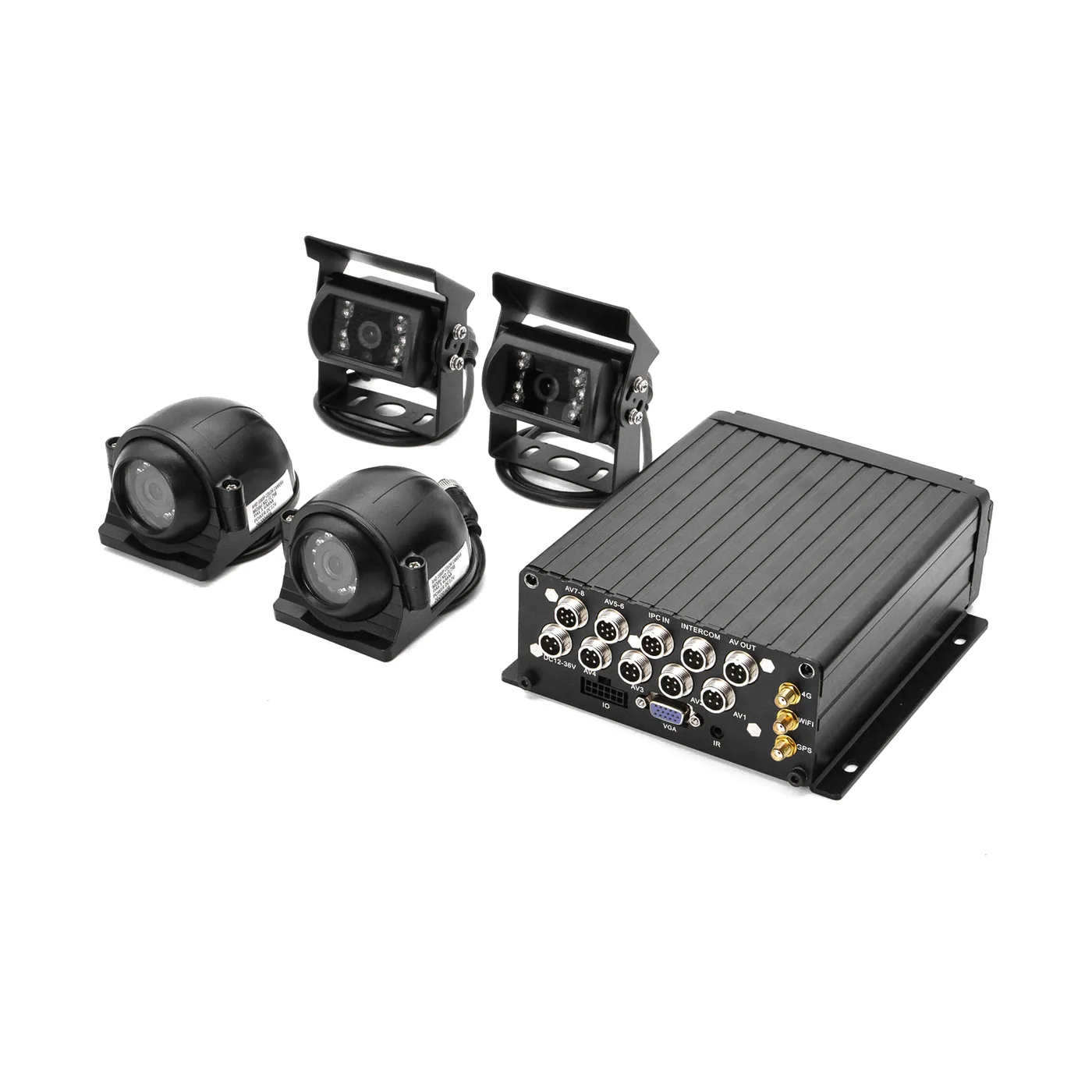

Pair it with a DSM Camera for driver fatigue and a BSD Camera for blind spots. The WD10 and WD11 run one ADAS, one DMS and two BSD channels together.

Fleet setups that use the ADAS-CAM

ADAS-CAM questions

Does the ADAS Camera need an MDVR?

Yes. It has no storage of its own; the MDVR records its video and logs its alerts.

Will lane-departure alerts trigger in slow traffic?

No. Lane-departure warning is active only above a speed threshold you set, so slow manoeuvres do not trigger it.

At what speed does pedestrian detection work?

Below 50 km/h. Forward-collision and lane-departure warnings are separate functions with their own settings.
