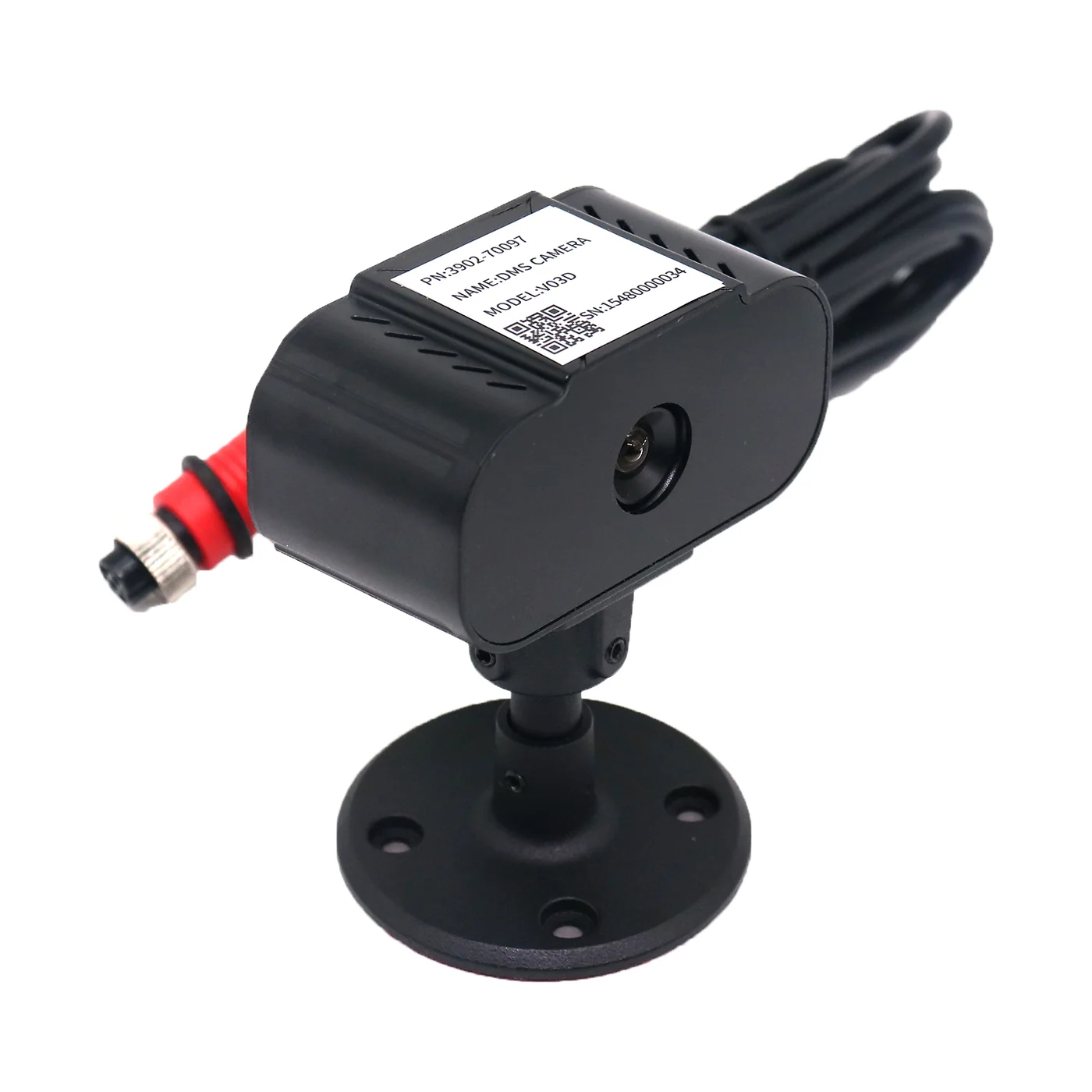

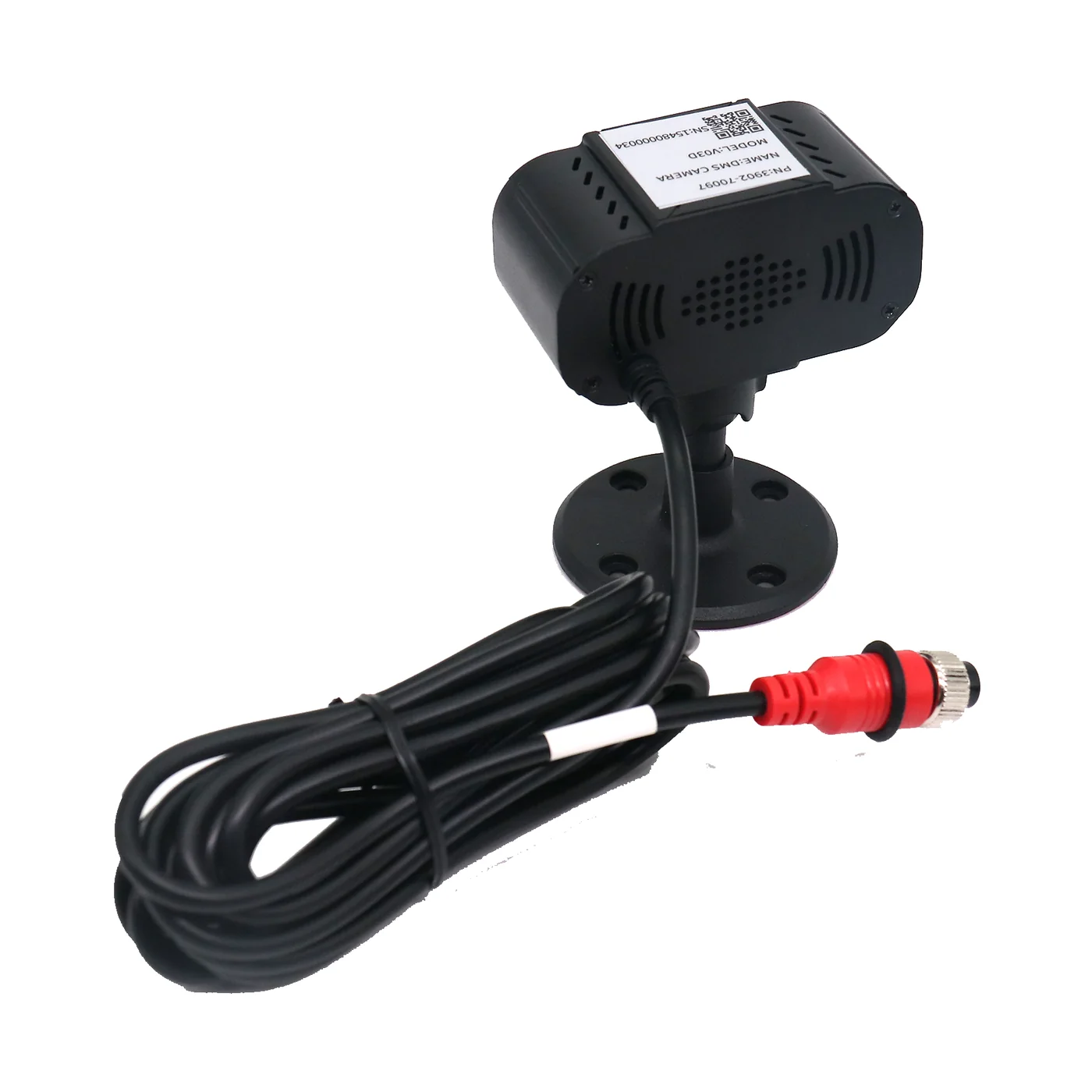

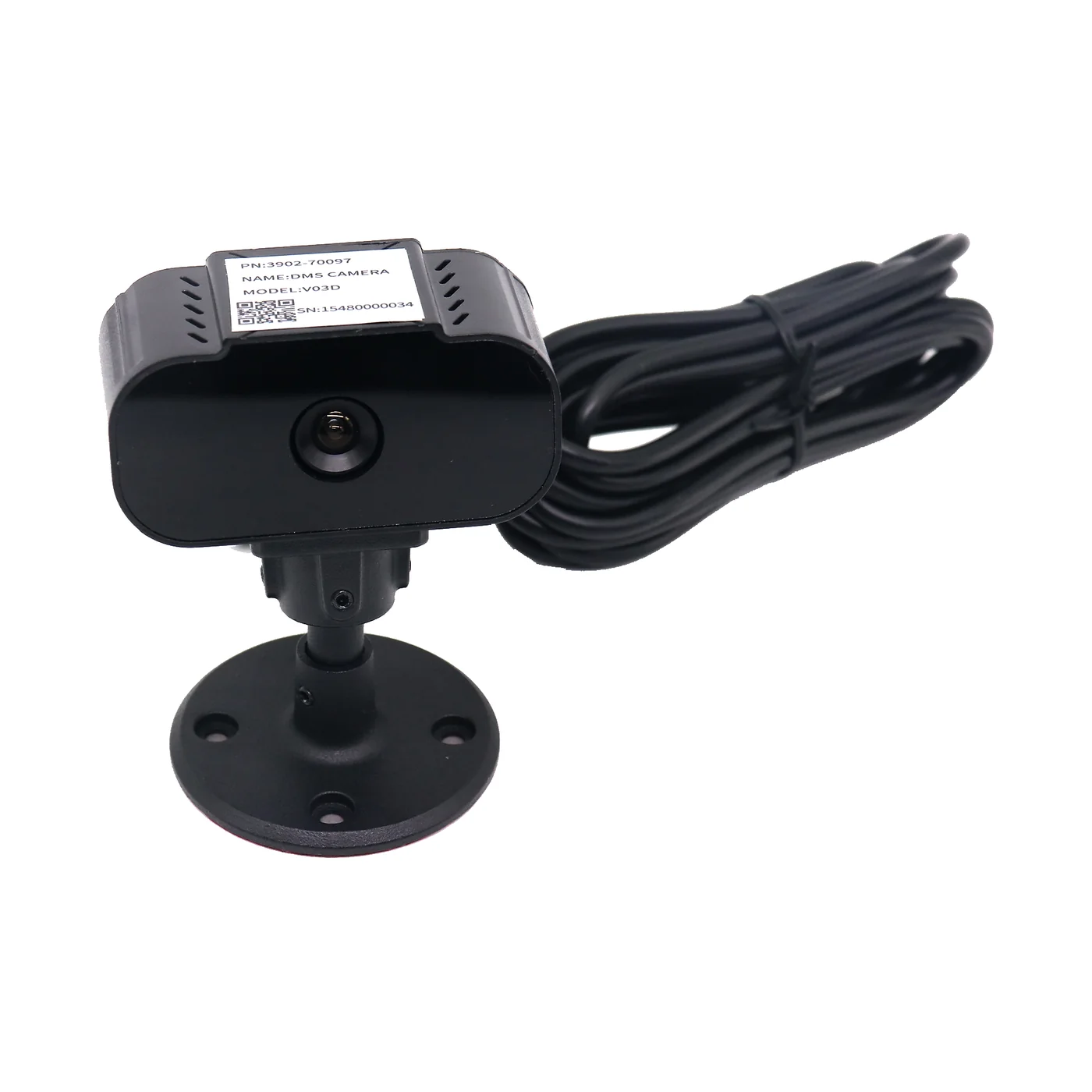

DSM CameraDSM Camera, view 2DSM Camera, view 3DSM Camera, view 4

MDVR cameras, model DSM-CAM

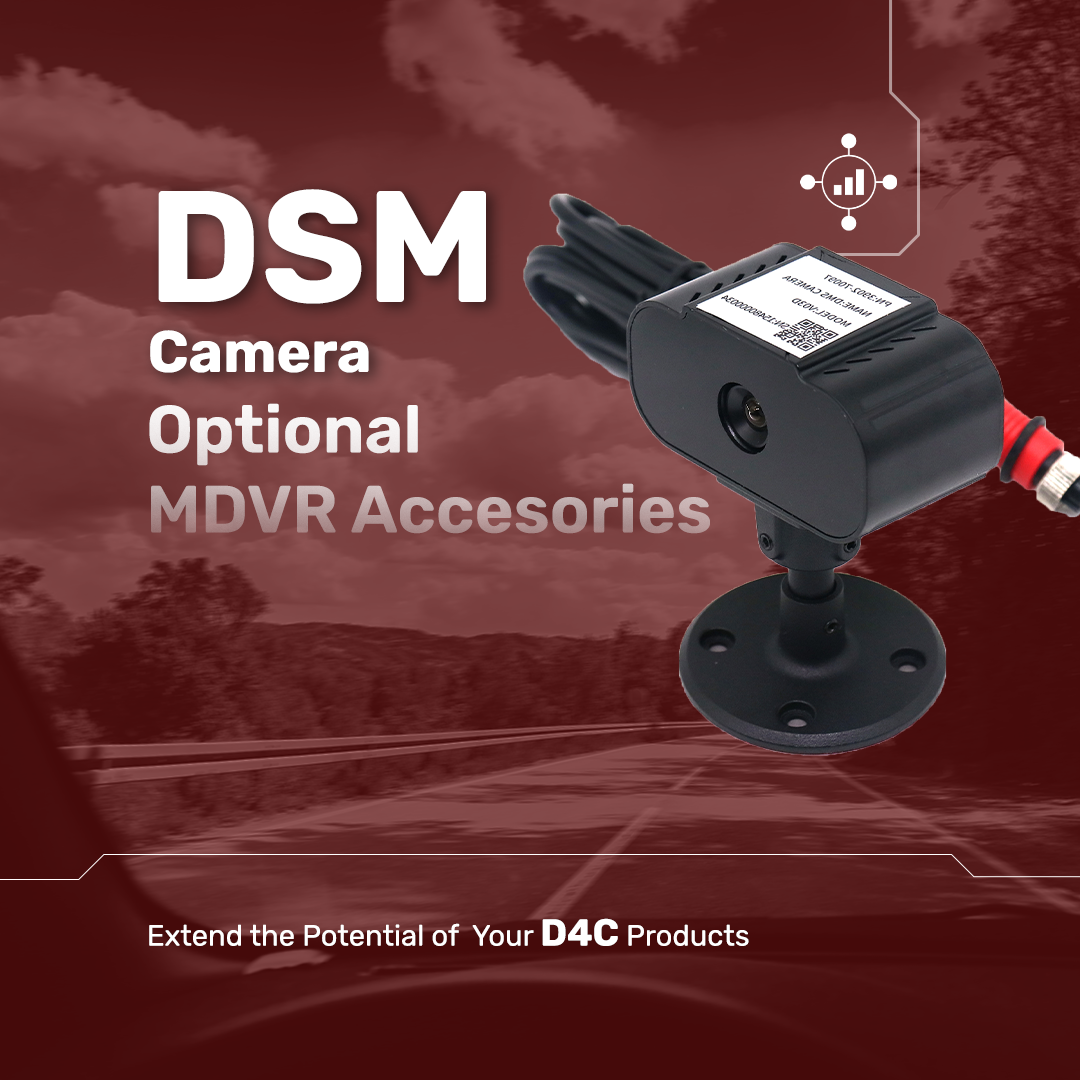

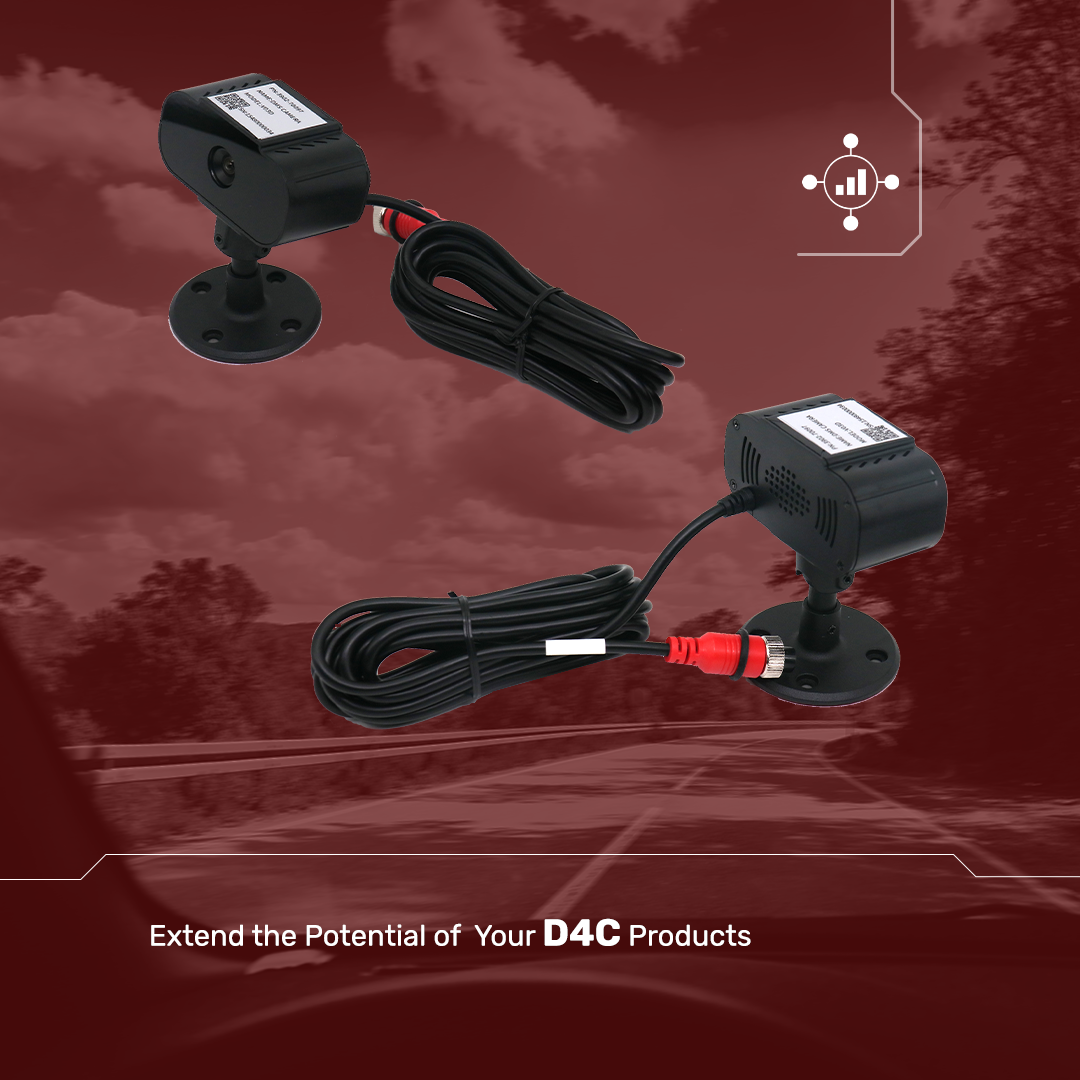

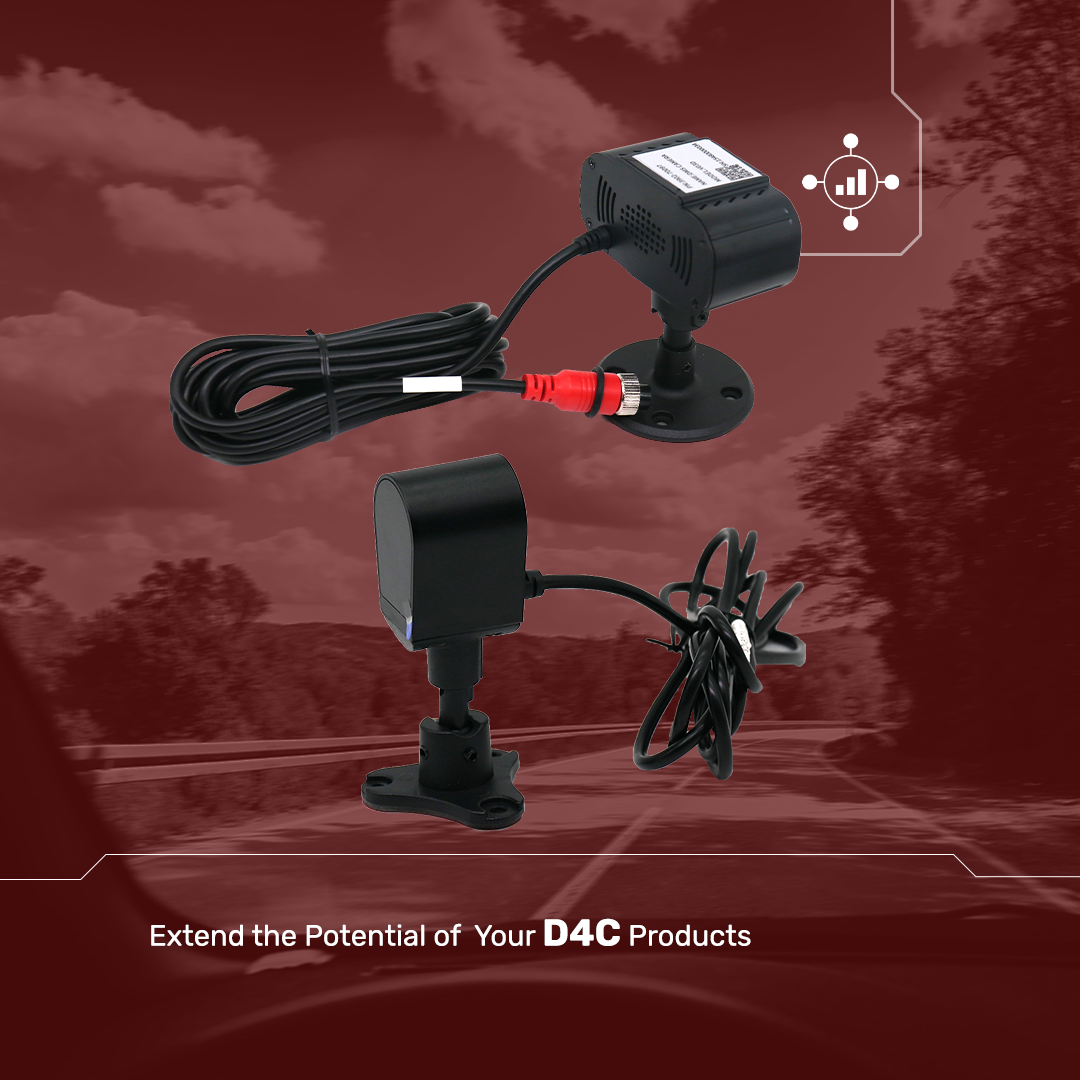

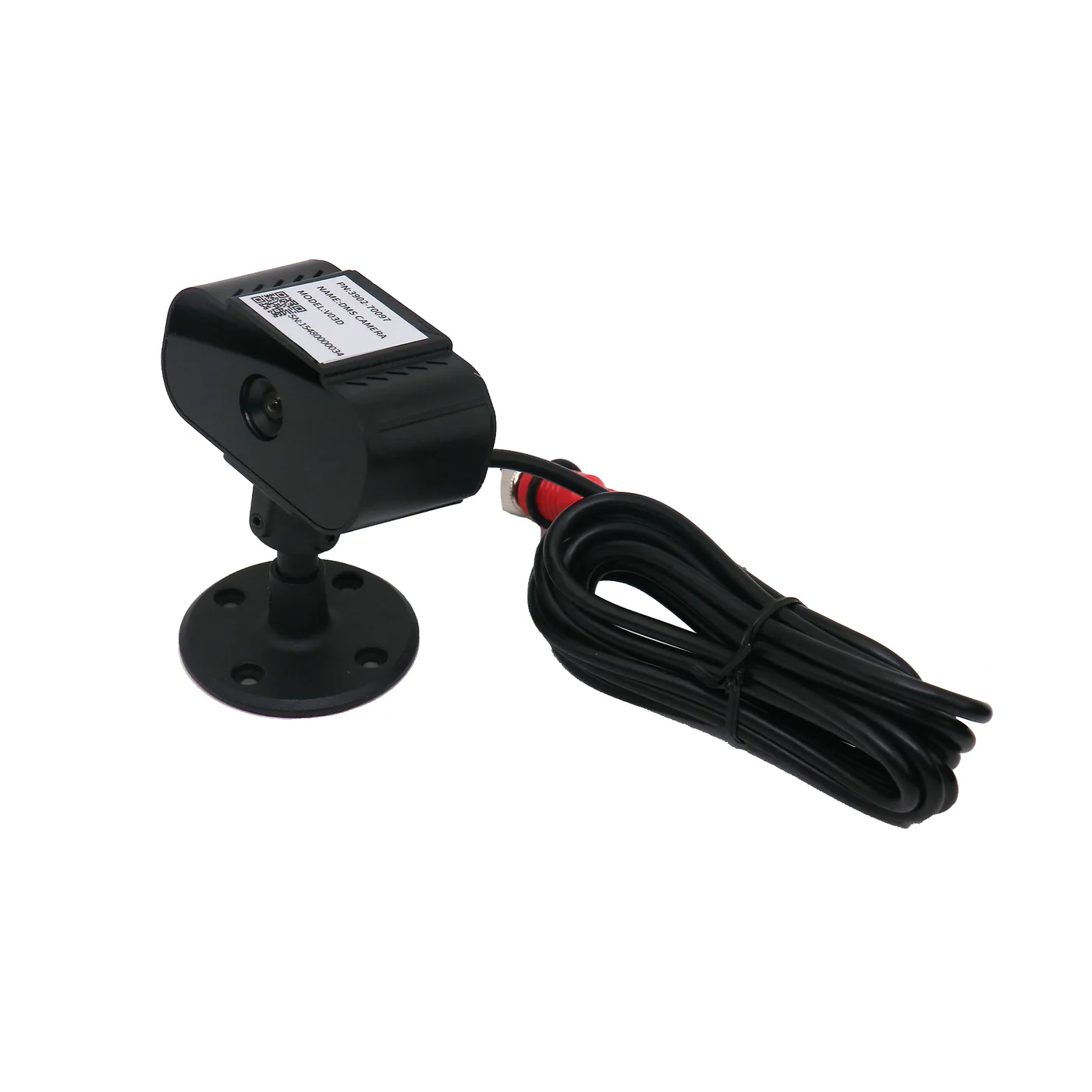

DSM Camera

1080p infrared driver camera with a closed-eye and nodding alarm

The DSM Camera is a driver-facing fatigue camera for MDVR systems. It records 1920 × 1080 on a 1/2.9-inch CMOS sensor with infrared night vision, detects closed eyes and head nodding, and sounds a fatigue alarm. Its viewing angle adjusts from 120° to 170°, and it runs on 12–24 V.

Video
1080p
Cameras
1
AI functions
DMS
Ask on WhatsApp

Prices depend on volume and configuration. Samples available for evaluation.

DSM-CAM at a glance

  • Fatigue alarm

    Detects closed eyes and head nodding and sounds an alarm in the cab.

  • Infrared night vision

    Detection keeps working in the dark.

  • 120°–170° viewing angle

    Frames the driver's face from the dashboard or the A-pillar.

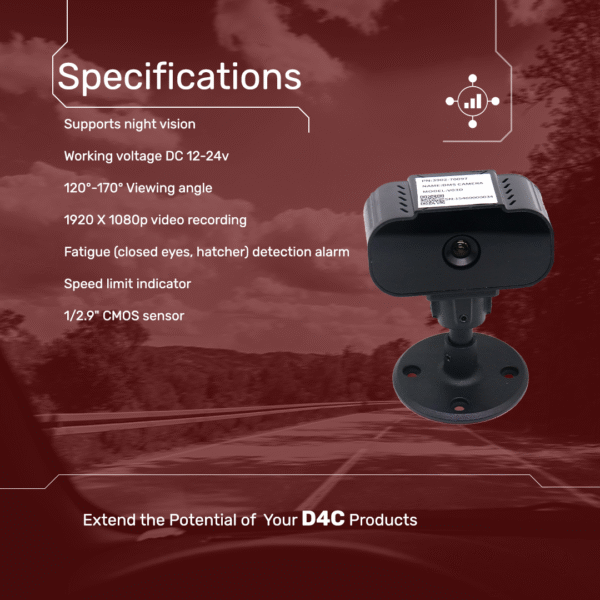

Specifications

DSM Camera. Specifications can change with firmware and configuration; confirm with sales for your order.

Downloads

Video

Resolution1920 × 1080
Sensor1/2.9-inch CMOS
Viewing angle120°–170°, adjustable
Night visionInfrared

AI safety

Fatigue detectionClosed eyes, head nodding
AlarmAudible fatigue alarm

Power & build

Input voltage12–24 V

The DSM Camera is a driver fatigue monitor. It faces the driver, watches for closed eyes and head nodding, and sounds an alarm when it detects either.

What it detects

  • Closed eyes. Eyes that stay closed trigger the fatigue alarm.
  • Head nodding. The head dropping forward triggers the alarm.

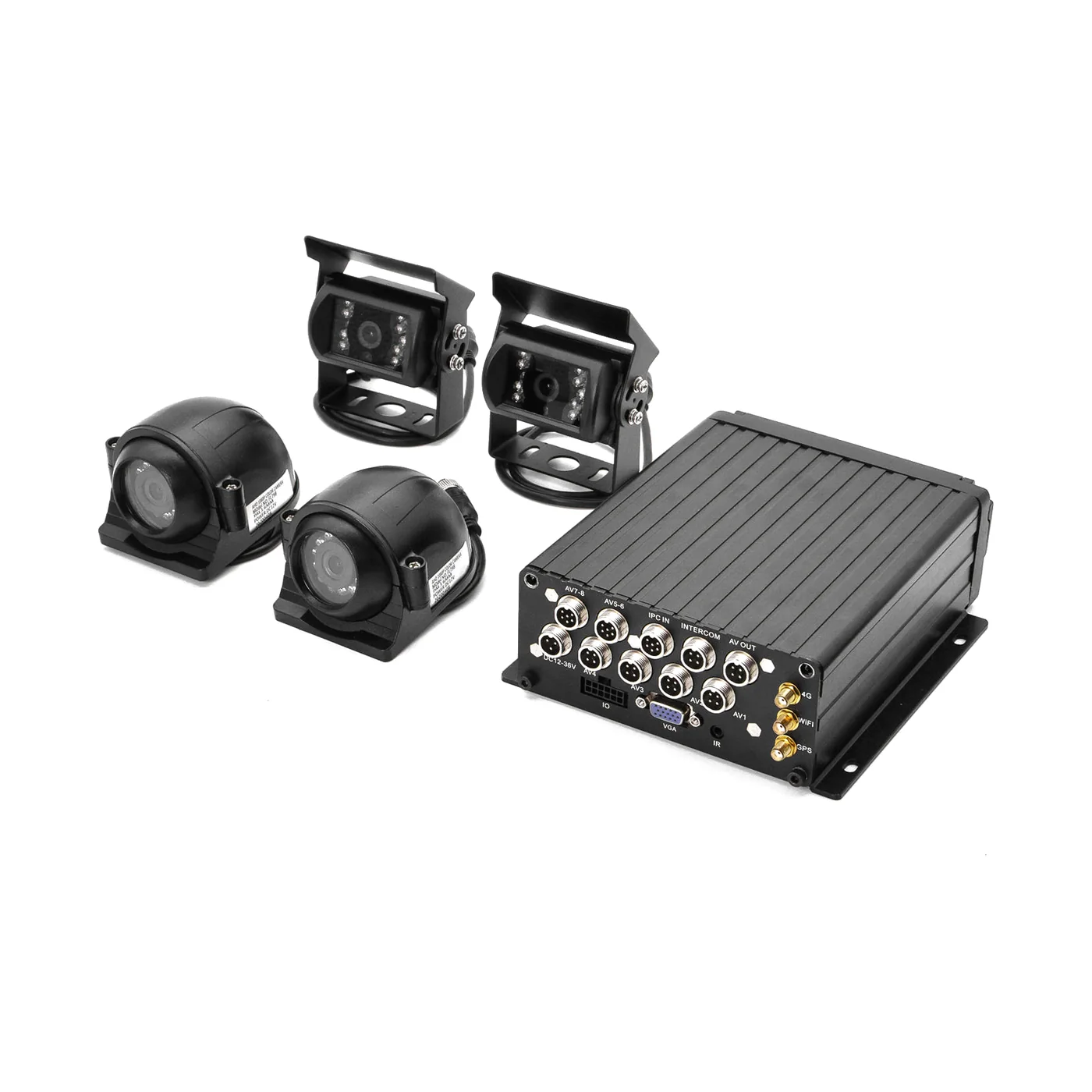

It does not detect distraction, phone use or smoking. For distraction, use the AHD005; phone calls and smoking are in the DMS function of the WD10 and WD11.

Installation

  • The viewing angle adjusts from 120° to 170°, so the camera can sit on the dashboard or the A-pillar and still frame the driver's face.
  • Infrared light keeps detection working in the dark.
  • Keep the lens clear of sun visors and steering-wheel spokes, so the face stays in view through the whole shift.
  • It runs on 12–24 V, for 12 V and 24 V vehicles.
  • The cable and connector differ by recorder, so state your MDVR model when you order.

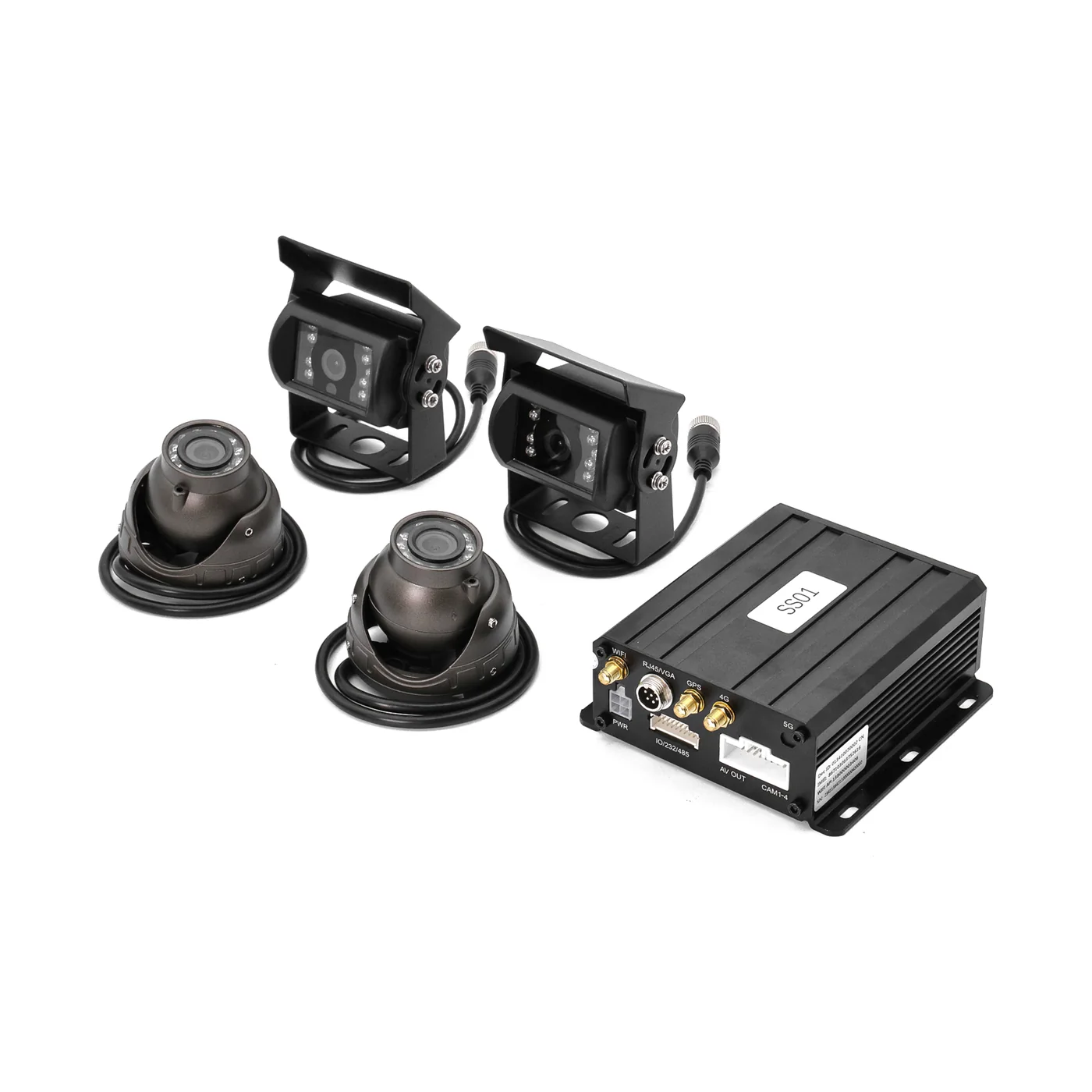

Connected to an MDVR, each fatigue event is stored with its video, so a manager can see when in a shift the alarms occur. To add road-facing alerts, pair it with the ADAS Camera on a recorder such as the WD12.

Fleet setups that use the DSM-CAM

DSM-CAM questions

What does the DSM Camera detect?

Closed eyes and head nodding. It sounds a fatigue alarm in the cab when it detects either. It does not detect distraction, phone use or smoking.

What is the difference between the DSM Camera and the AHD005?

Both are driver-facing 1080p infrared cameras. The AHD005 adds yawning and distraction detection and checks whether a hat or helmet is worn.

What power does the DSM Camera need?

12–24 V, so it fits both 12 V and 24 V vehicles.

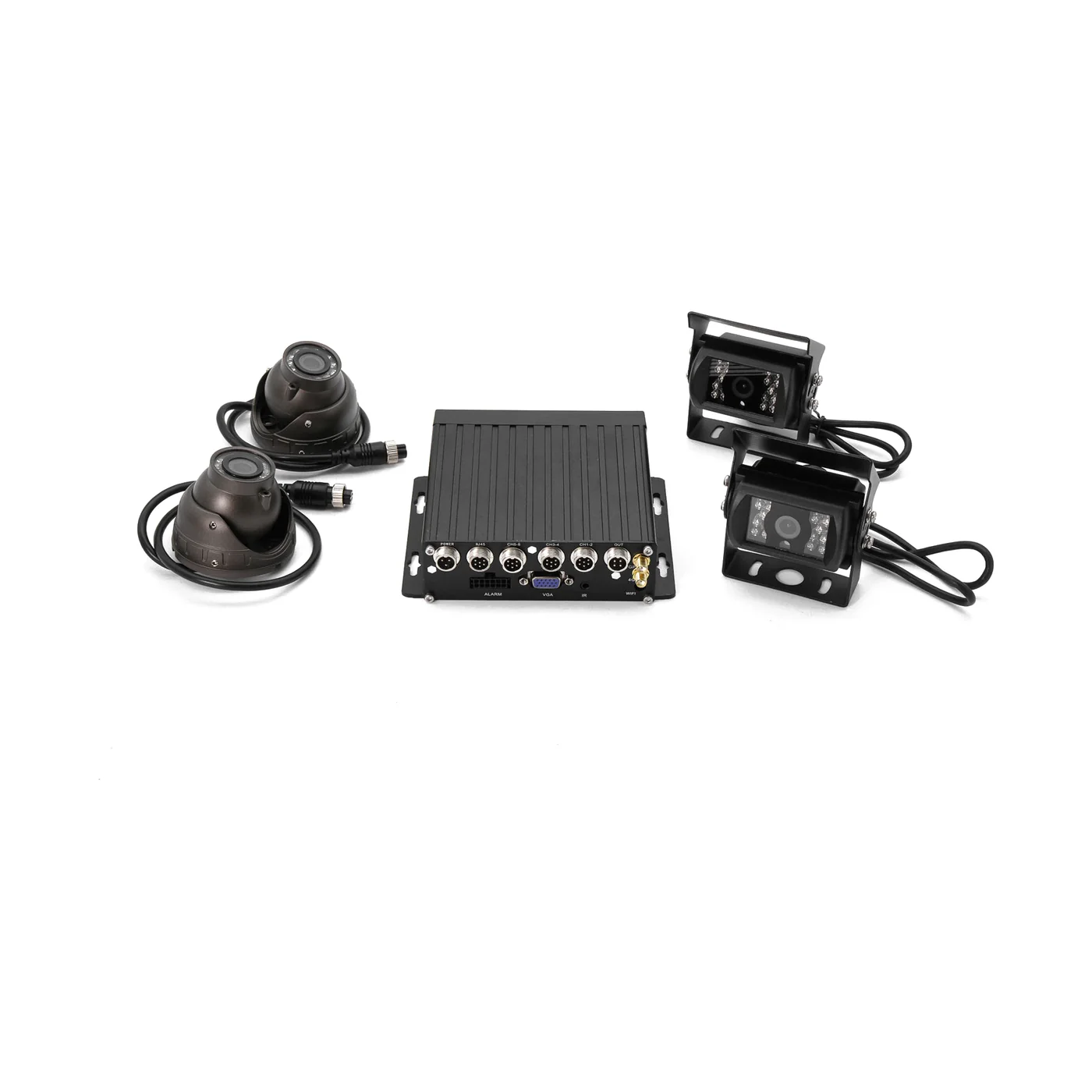

Recorders it connects to
