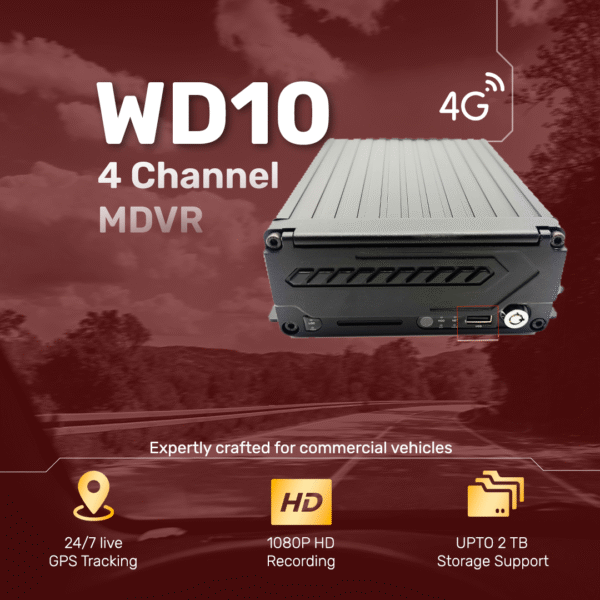

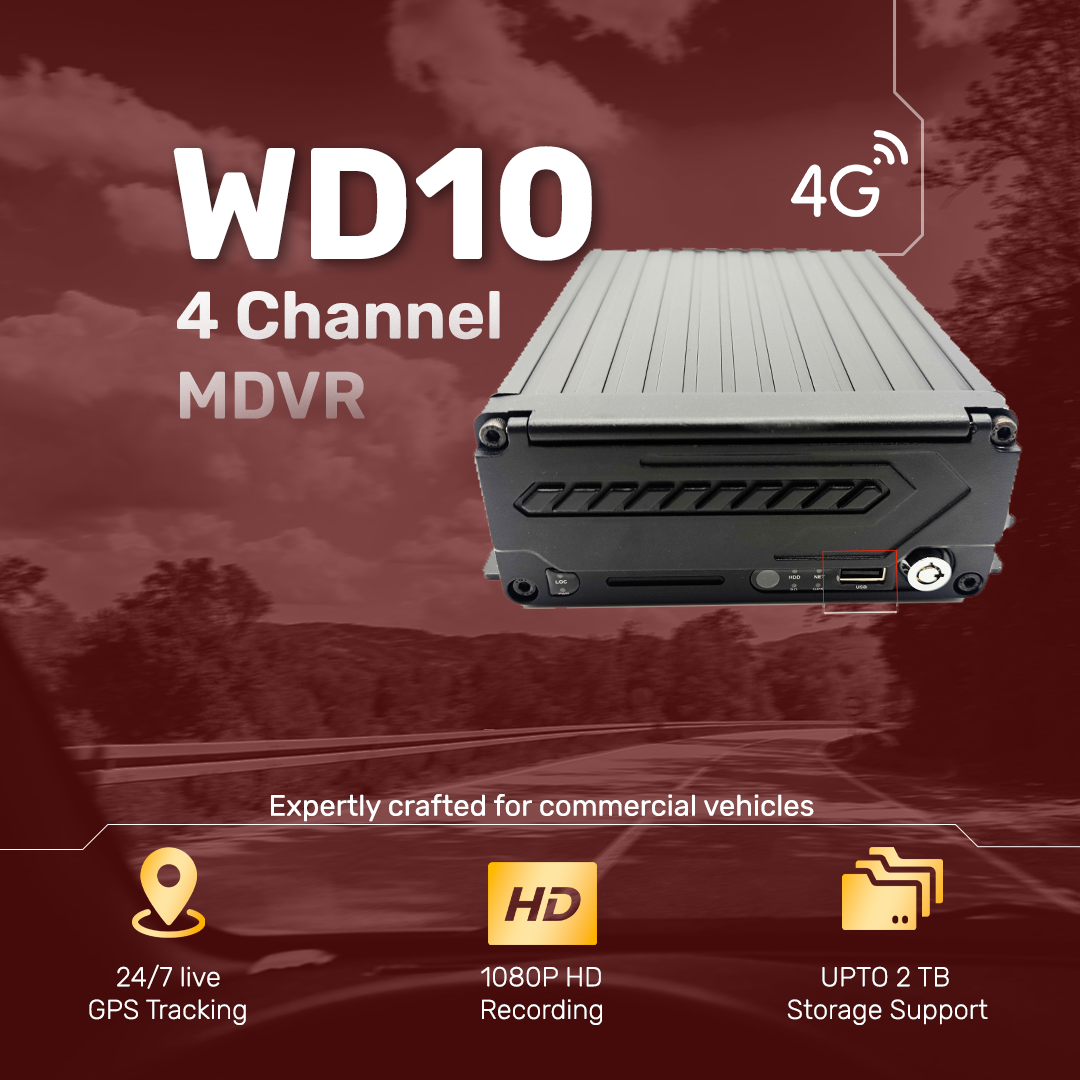

MDVR systems, model WD10

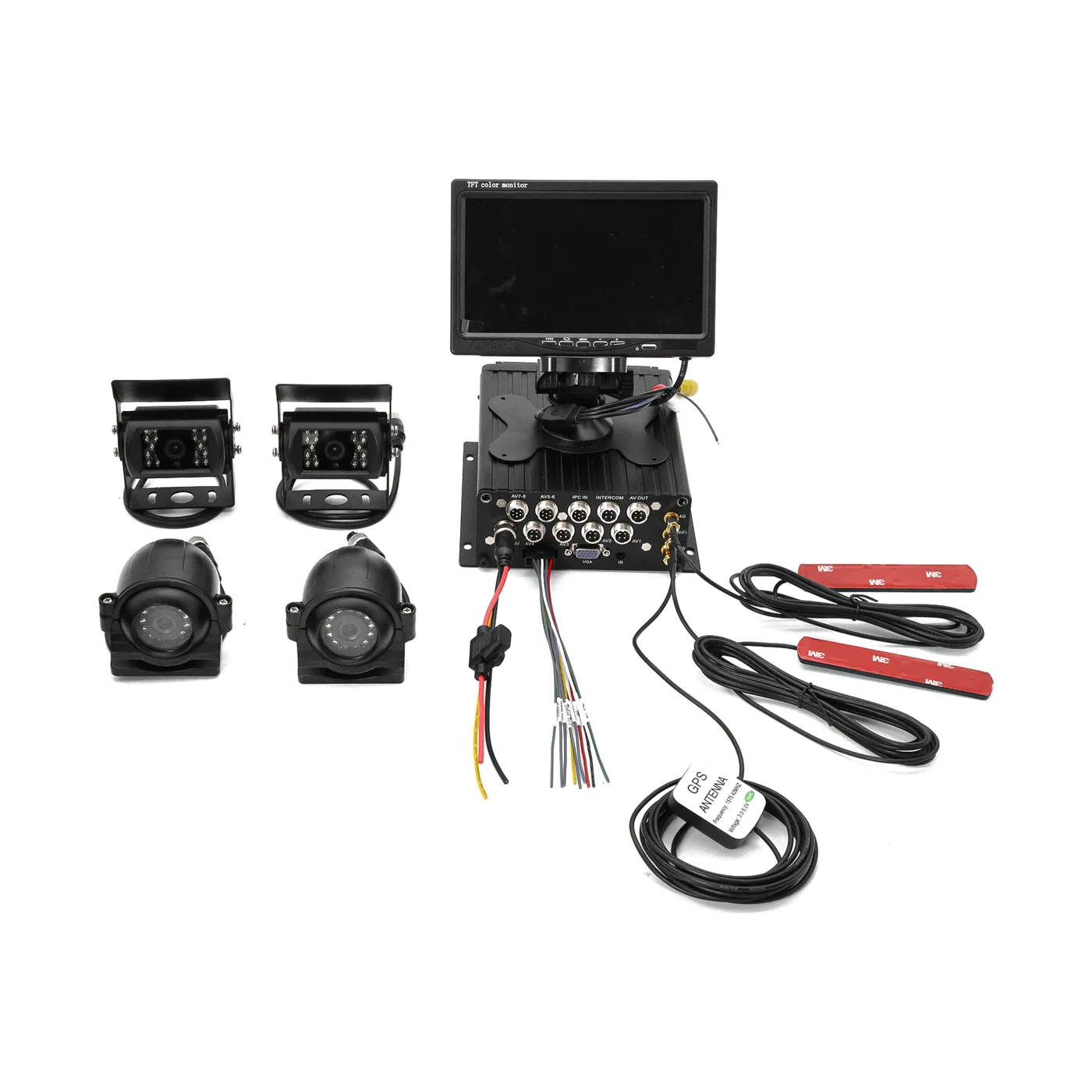

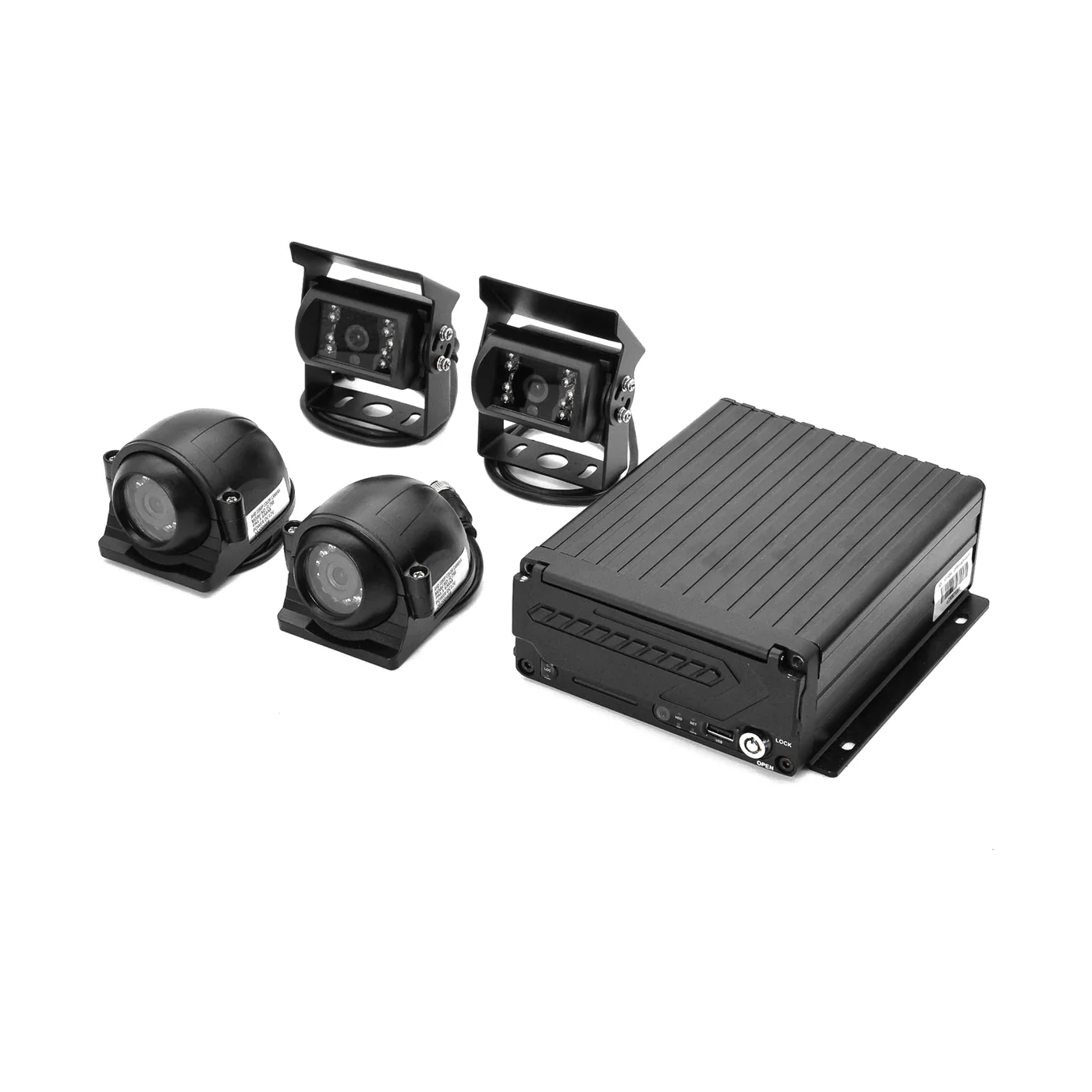

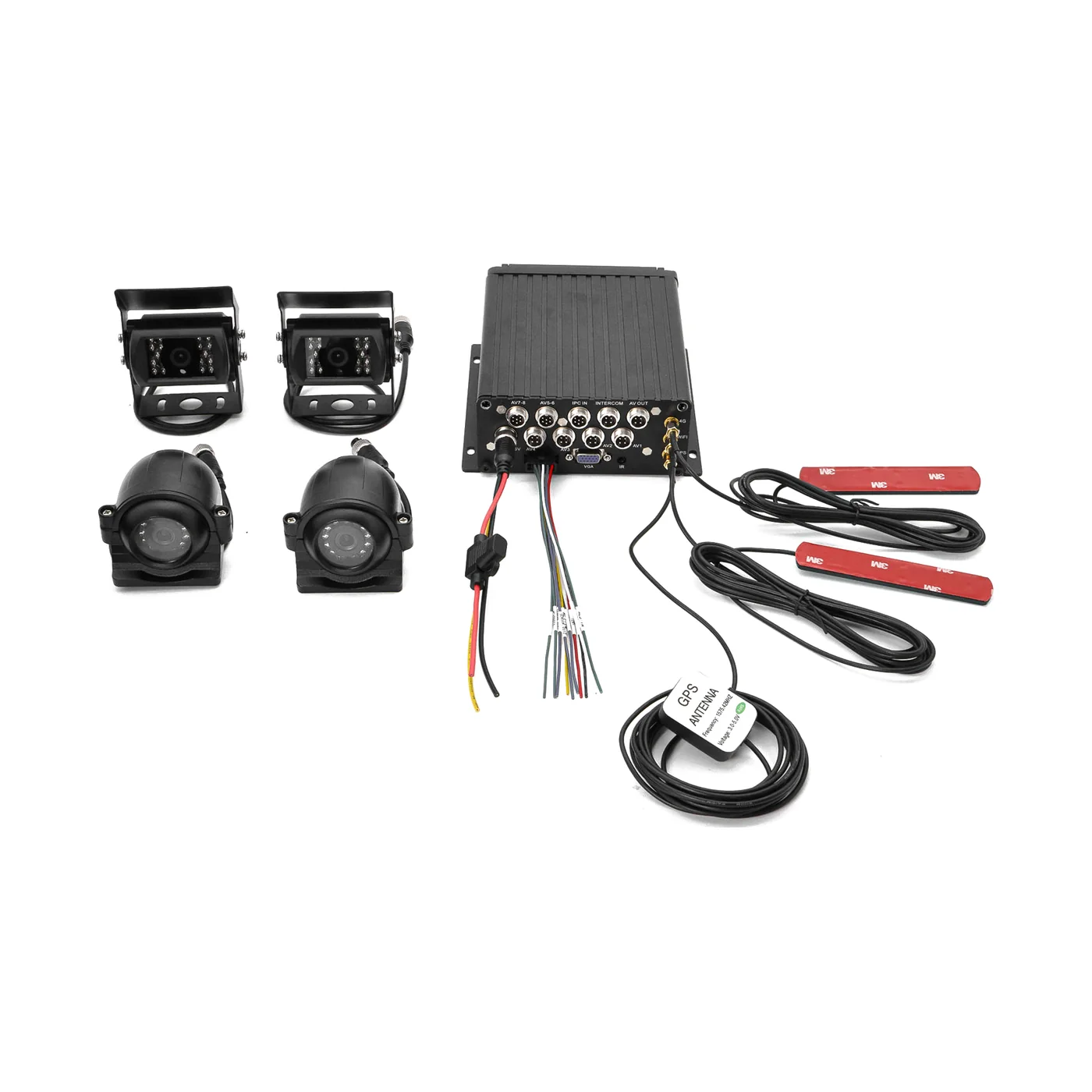

WD10 AI MDVR

4- or 8-channel AI MDVR with up to 2 TB HDD and optional 4G

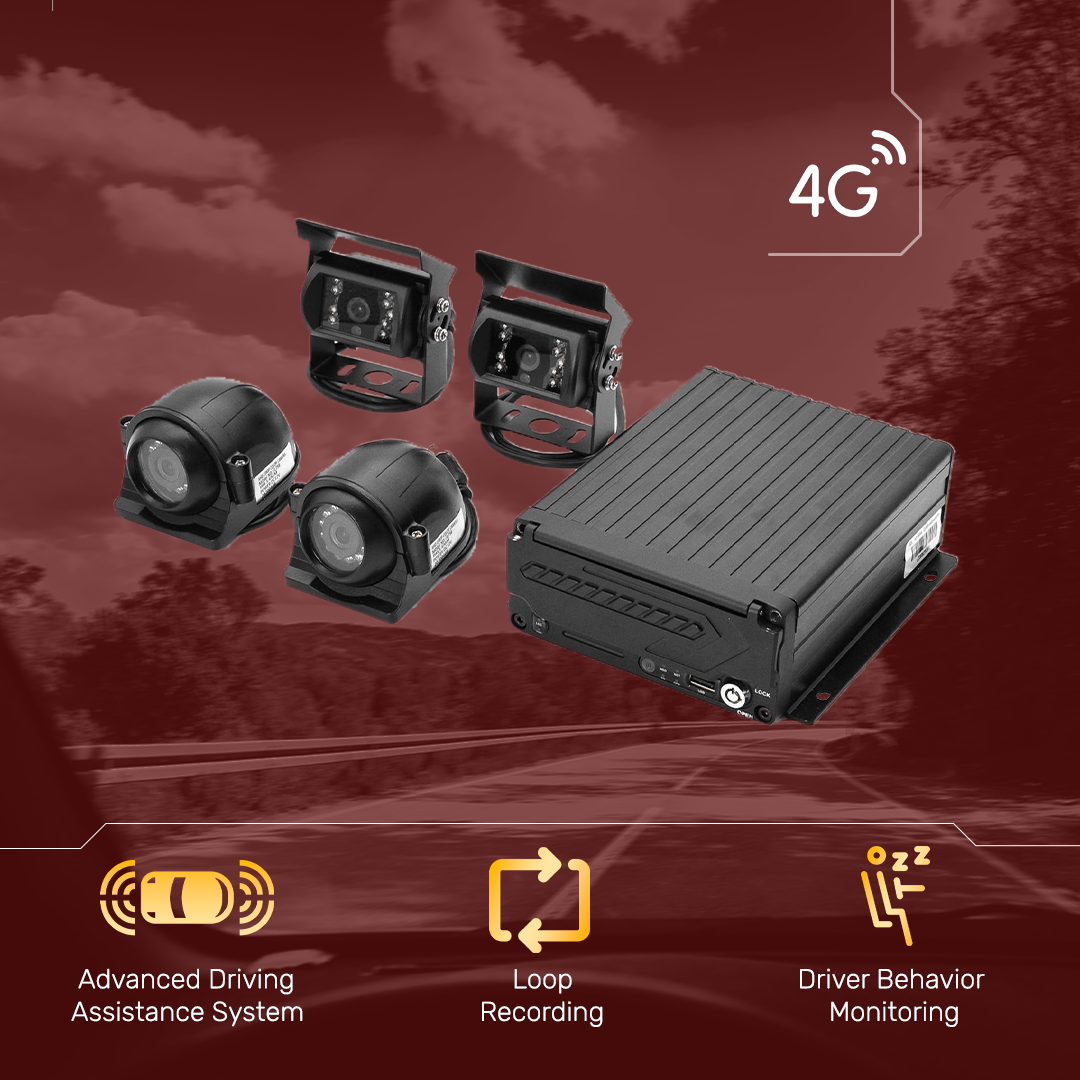

The WD10 is a hard-disk mobile DVR for buses and trucks. It records four 1080p or eight 720p cameras in H.264 or H.265 to a disk of up to 2 TB, with an SD card as backup. It supports ADAS, DMS, BSD and passenger counting, runs on 10–36 V, and takes optional 4G, GPS and Wi-Fi modules.

Video: 1080p
Cameras: 4 × 1080p or 8 × 720p
Connectivity: Optional: 4G, Wi-Fi, GPS
AI functions: ADAS, DMS, BSD, Passenger counting

Ask on WhatsApp

Prices depend on volume and configuration. Samples available for evaluation.

WD10 at a glance

Up to 2 TB hard disk
About 170 hours from eight 720p cameras, or 260 hours from four 1080p cameras, before the loop overwrites.
Four AI channels
One ADAS, one DMS and two BSD cameras run together, with the matching cameras connected.
10–36 V input
Wide-voltage power with protection circuits, for 12 V and 24 V vehicles.
Optional 4G module
Live video, playback and intercom in the Traqcare app and web platform.

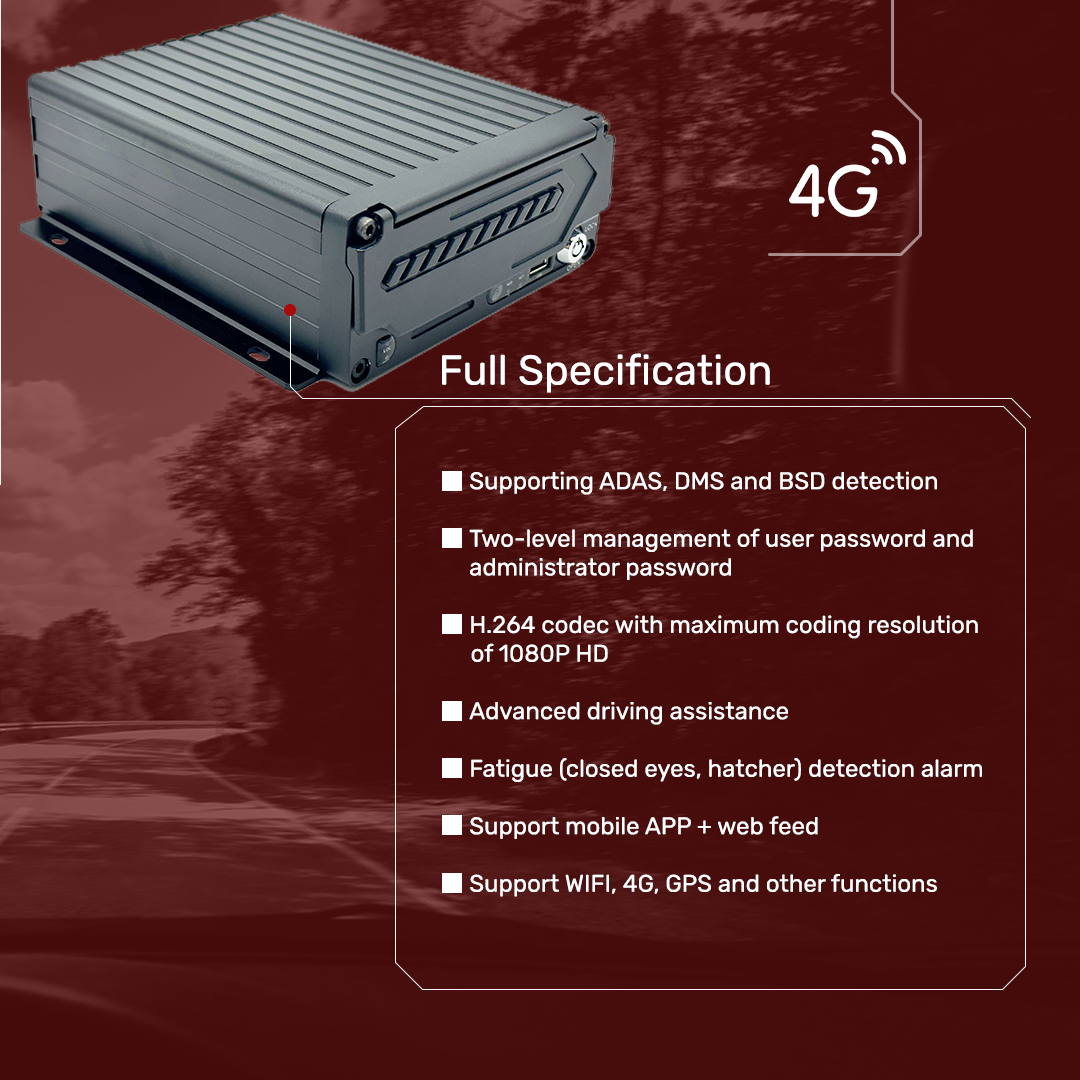

Specifications

WD10 AI MDVR. Specifications can change with firmware and configuration; confirm with sales for your order.

Checked against our product specifications, October 2026.

Downloads

WD10 product sheet PDF, generated from this page

Video

Cameras	4 × 1080p or 8 × 720p
Resolution	1080p, 720p, D1, HD1, CIF
Codec	H.264 / H.265
Output	VGA and aviation connector

AI safety

AI channels	Up to 4 at once: 1 ADAS, 1 DMS and 2 BSD
ADAS	Lane departure, pedestrian detection, vehicle distance warning
DMS	Closed eyes, yawning, distraction, phone calls, smoking, face lost, blocked camera
BSD	Left and right blind-zone alarms
Passenger counting	1–4 doors; not at the same time as ADAS and DMS; 2 channels per counter

Connectivity

Network	4G, Wi-Fi and GPS modules (optional)
Platform	Traqcare app and web platform: live view, playback, intercom, screenshots
Platform connections	Up to 4 at the same time

Storage

Primary	Hard disk up to 2 TB
Backup	SD card up to 256 GB
Recording	Loop, timed and alarm recording; up to 24 hours after ignition off; capacitor power-failure protection

Power & build

Input voltage	10–36 V DC; overload, under-voltage, short-circuit and reverse-polarity protection
Power output	12 V DC for cameras and a monitor
Power draw	≤ 10 W
Operating temperature	-20 °C to +70 °C
Size and weight	161 × 159 × 63 mm, 1.1 kg
Security	User and administrator passwords

Interfaces

Alarm inputs	4 × IO
Serial	1 × RS232 (card reader, fuel sensor), 1 × RS485 (pan-tilt camera)

The WD10 is a hard-disk mobile DVR. It takes four camera inputs at 1080p or eight at 720p, records in H.264 or H.265 to a hard disk of up to 2 TB, and keeps a backup on an SD card of up to 256 GB. A built-in capacitor keeps the recorder running long enough to close its files if vehicle power fails.

What the WD10 does

Keeps footage for days. Eight 720p cameras use about 10.8 GB an hour at standard quality, so a 2 TB disk holds roughly 170 hours before the oldest footage is overwritten; four 1080p cameras get about 260 hours. Recording can continue for up to 24 hours after the ignition is switched off.
Runs up to four AI channels. One ADAS camera, one DMS camera and two BSD cameras can run together. ADAS warns of lane departure, pedestrians and short following distance. DMS detects closed eyes, yawning, distraction, phone calls, smoking, a lost face and a blocked camera. BSD covers the left and right blind zones.
Counts passengers. Counters can be fitted to one to four doors. Counting cannot run at the same time as ADAS and DMS, and each counter uses two channels.
Reaches the control room. With the 4G module, operators watch live video, play back footage, take screenshots and talk to the driver in the Traqcare app or web platform.
Connects switches and sensors. Four IO alarm inputs take panic buttons and door switches. RS232 takes a card reader or a fuel sensor, and RS485 a pan-tilt camera.

Installation

10–36 V DC input with overload, under-voltage, short-circuit and reverse-polarity protection. A 12 V output powers the cameras and a small monitor.

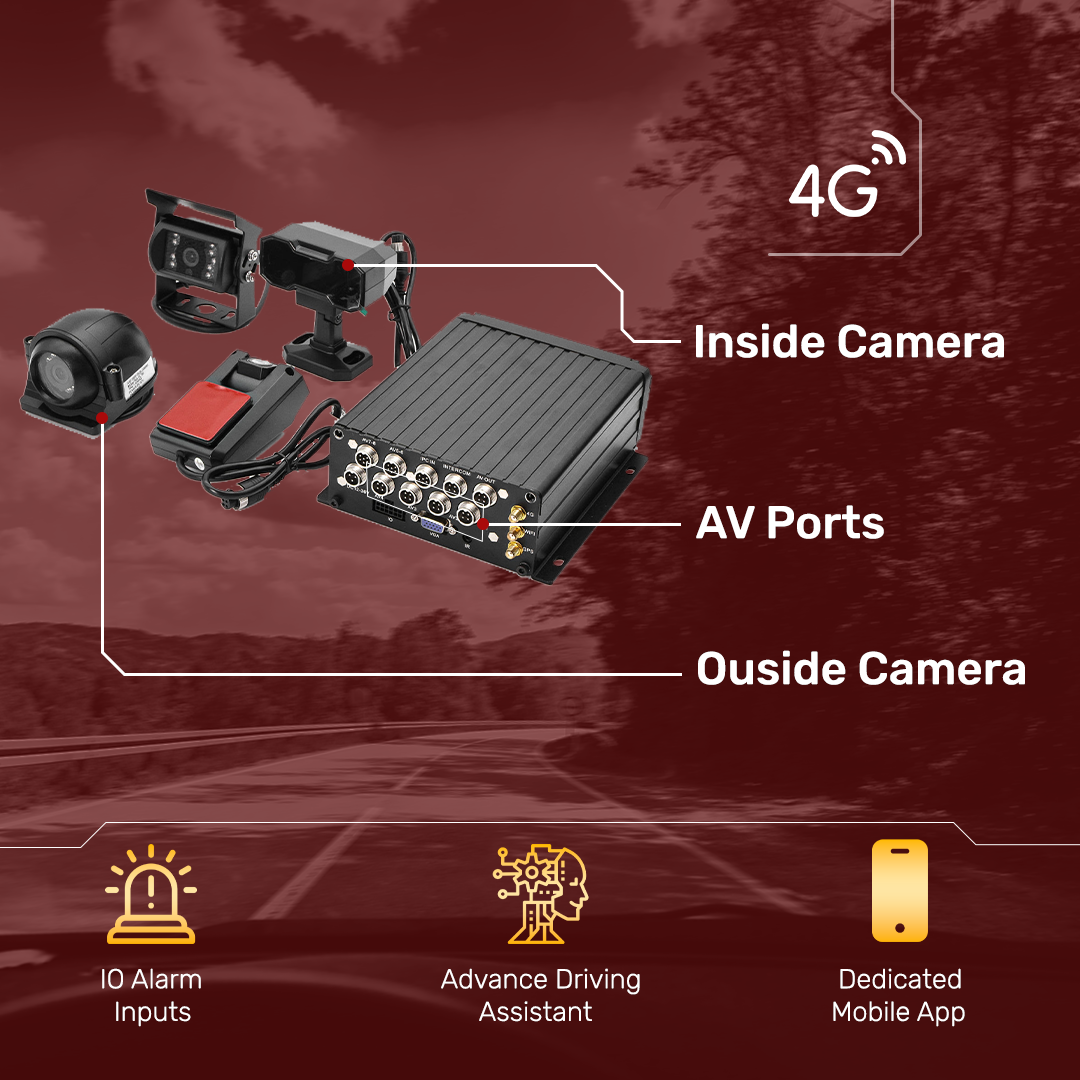

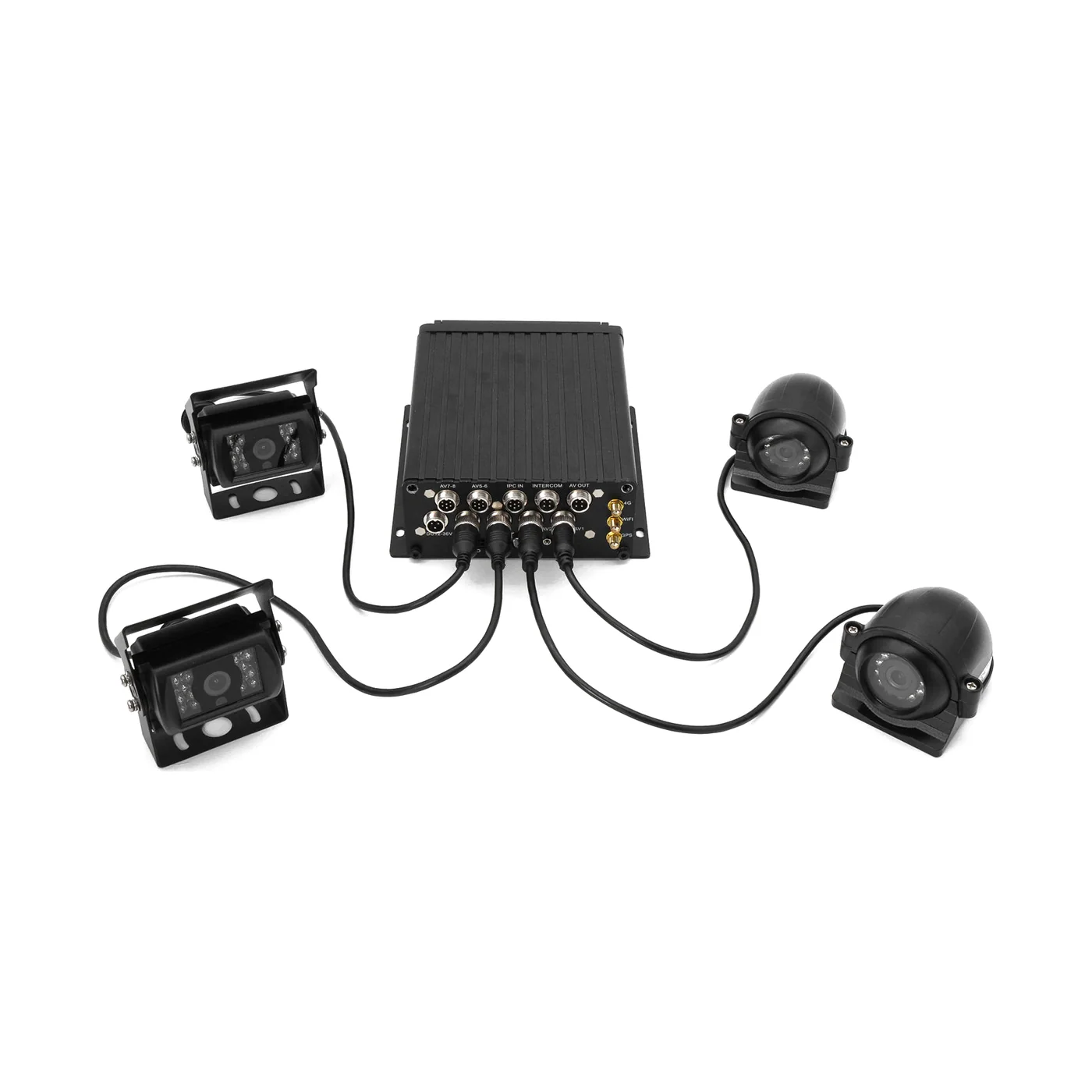

Cameras connect with locking aviation connectors. Video output is VGA or an aviation connector.
Mount the recorder in a protected place, such as a cabinet or under a seat. It measures 161 × 159 × 63 mm and weighs 1.1 kg.
We recommend professional installation and supply wiring guidance.

For SD-card recording, see the WD11. For a compact four-channel unit, see the WD12.

Fleet setups that use the WD10

WD10 questions

How long does the WD10 keep footage?

On a 2 TB disk at standard quality, about 170 hours from eight 720p cameras or about 260 hours (11 days of continuous recording) from four 1080p cameras. H.265 roughly doubles both. An SD card of up to 256 GB keeps a backup.

How many cameras does the WD10 record?

Four cameras at 1080p or eight cameras at 720p. Tell us which configuration you need when you request a quote.

Can the WD10 count passengers?

Yes, on one to four doors. Passenger counting cannot run at the same time as ADAS and DMS, and each counter uses two channels.

Is 4G built into the WD10?

No. 4G, GPS and Wi-Fi are optional modules. Order them with the recorder if you need live view, tracking or wireless download.

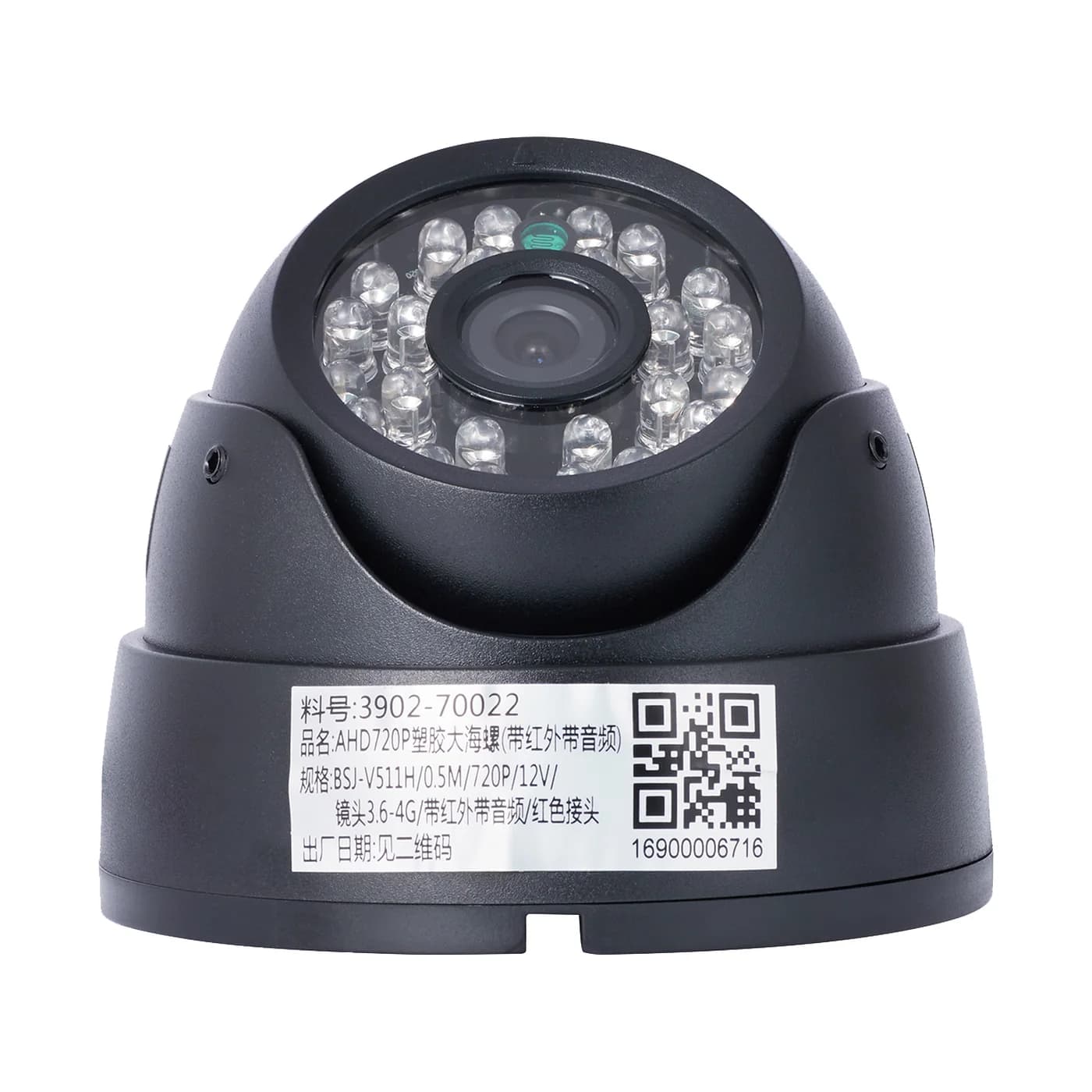

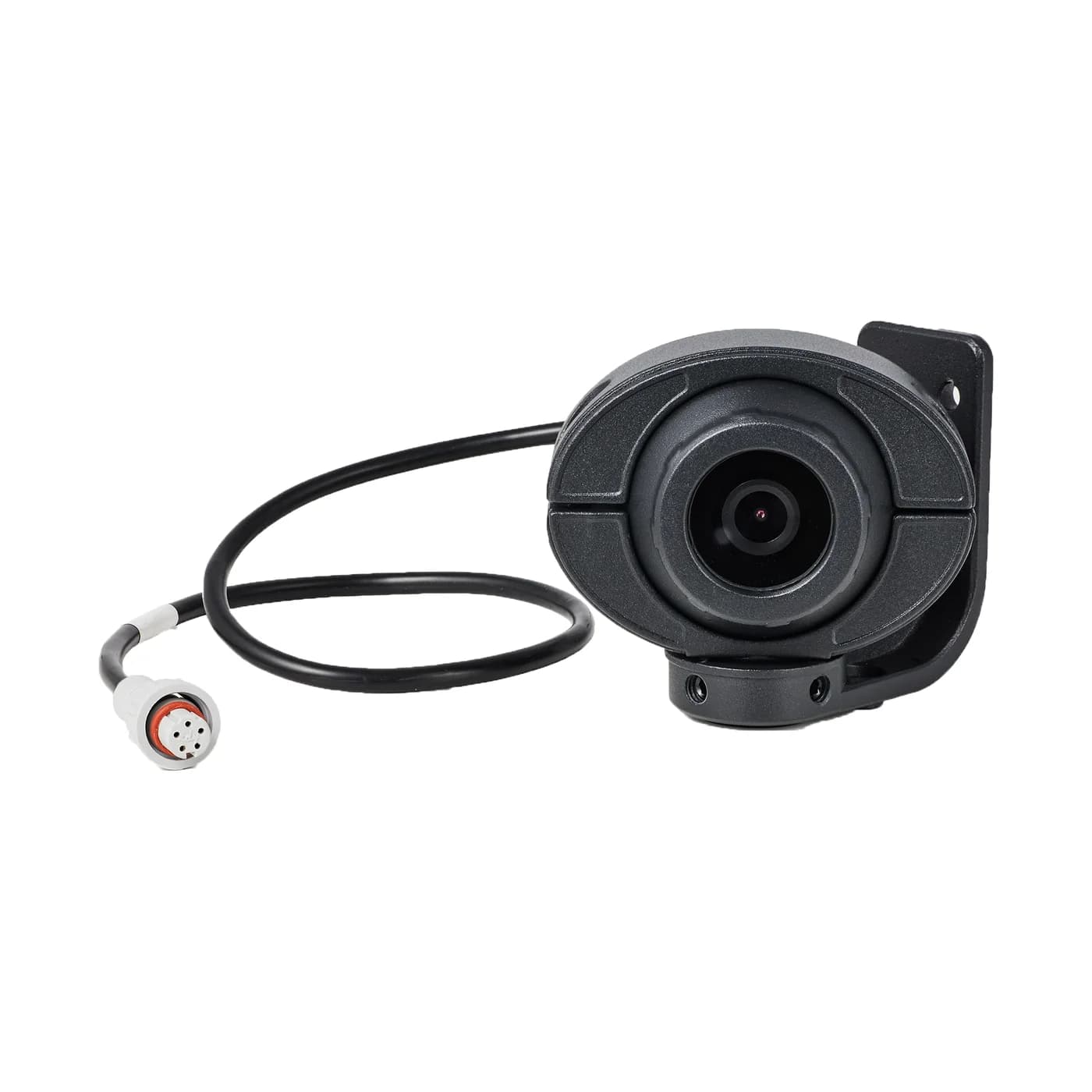

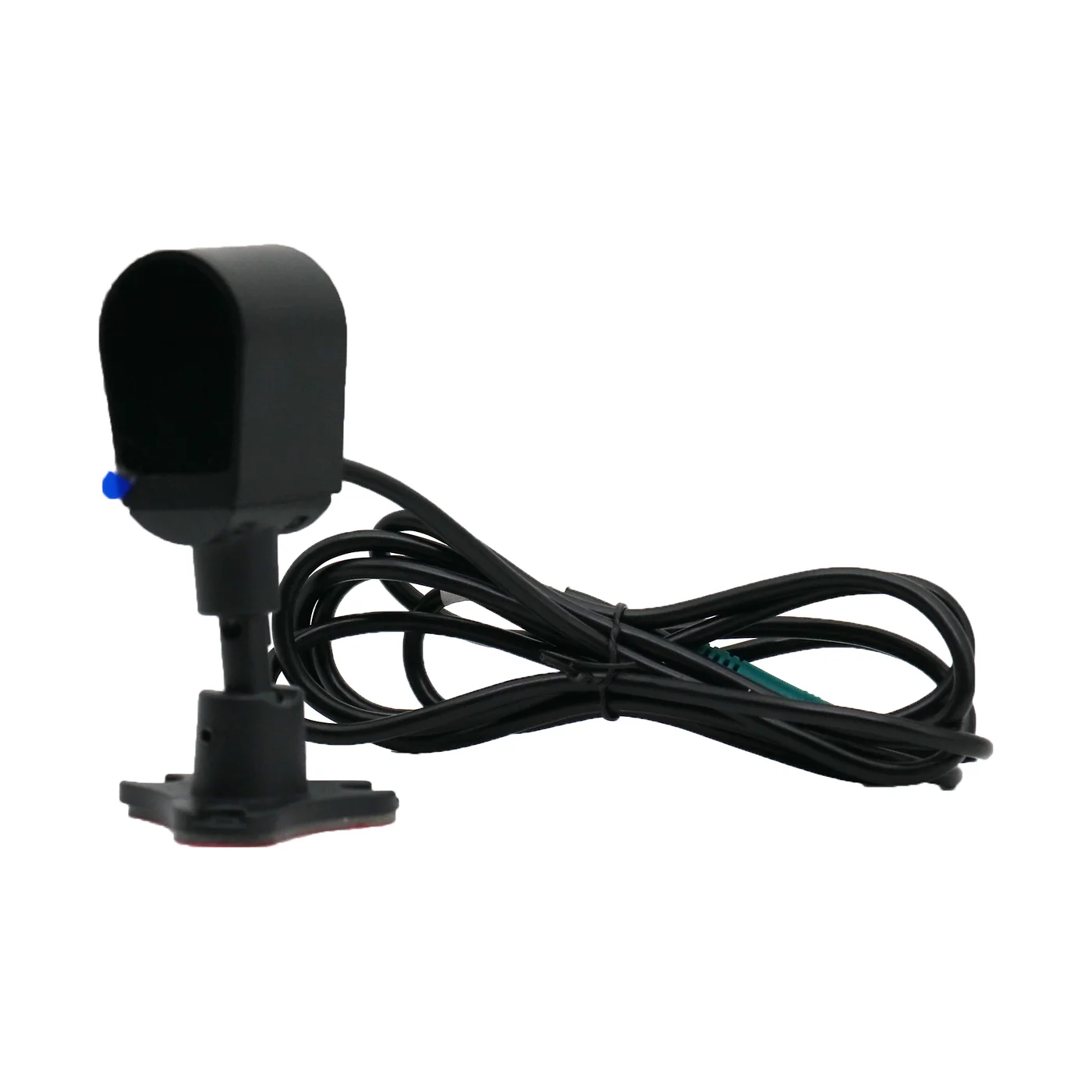

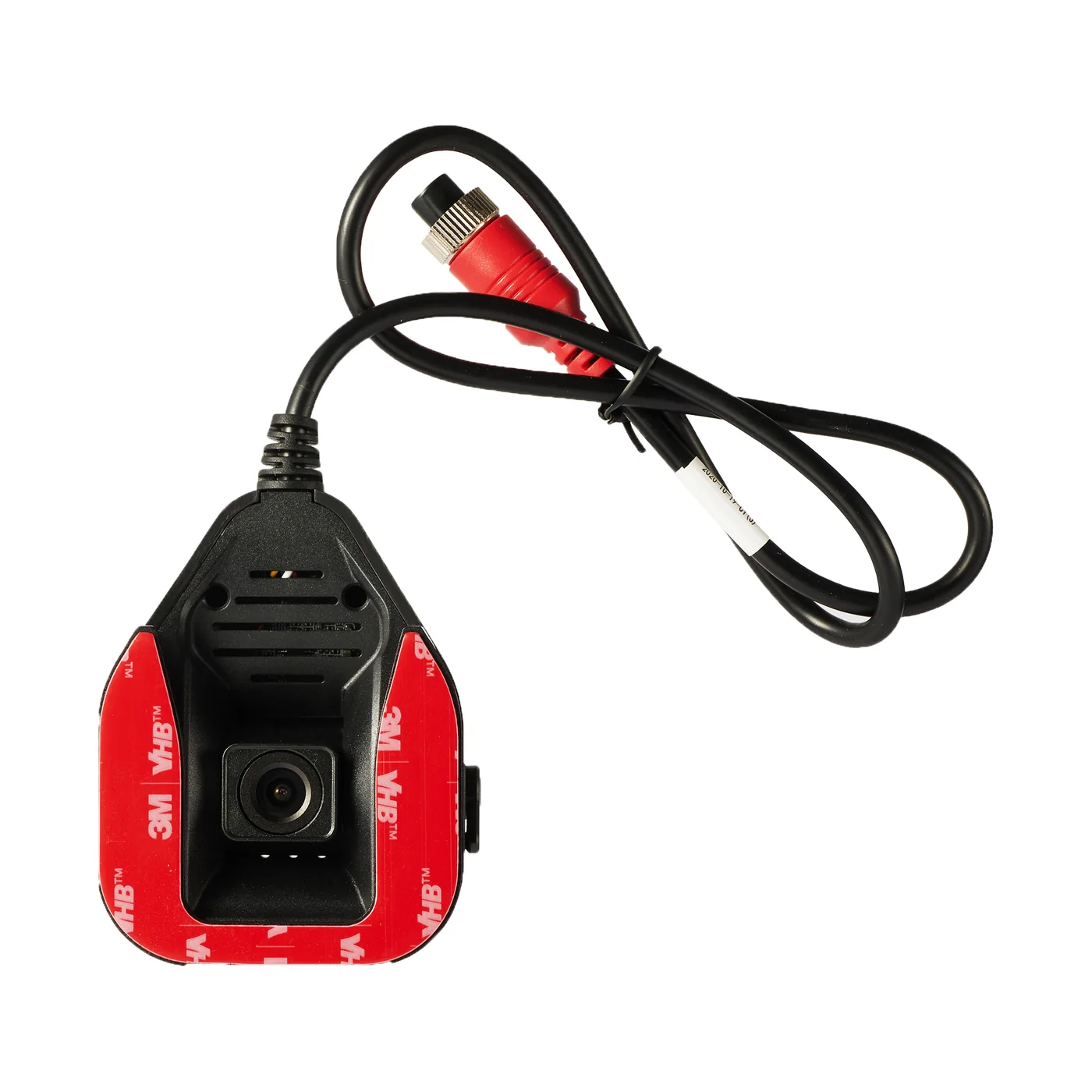

Cameras for this recorder
