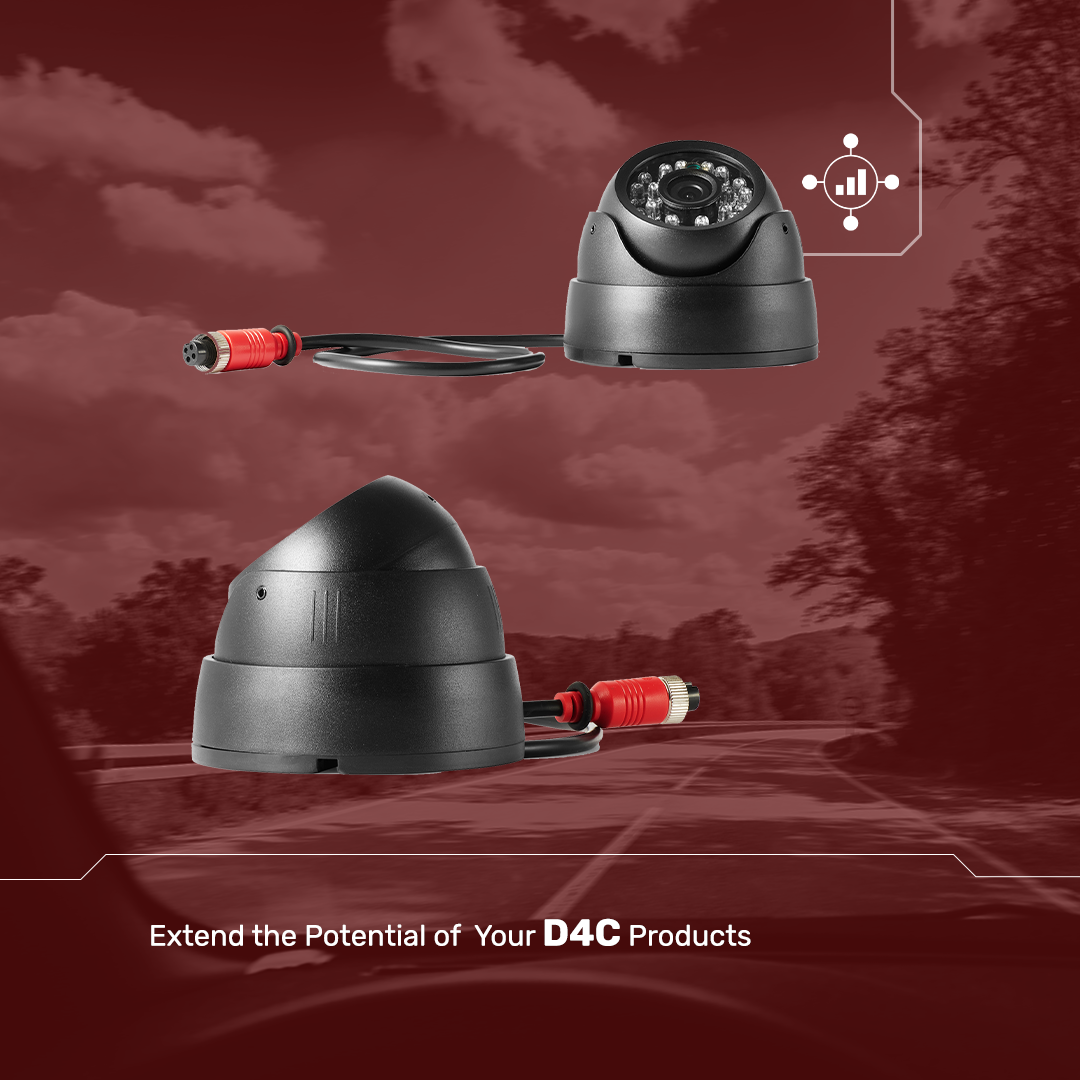

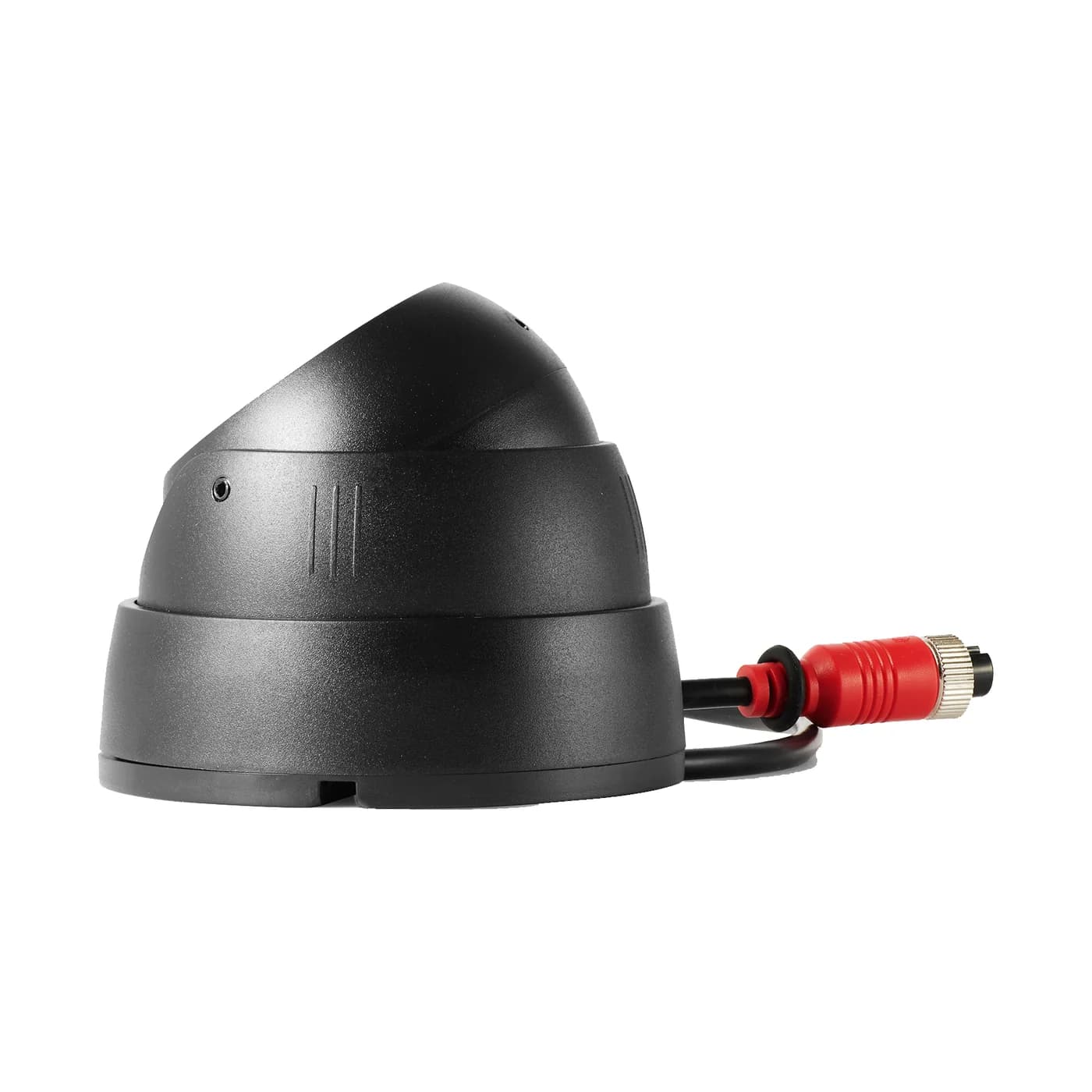

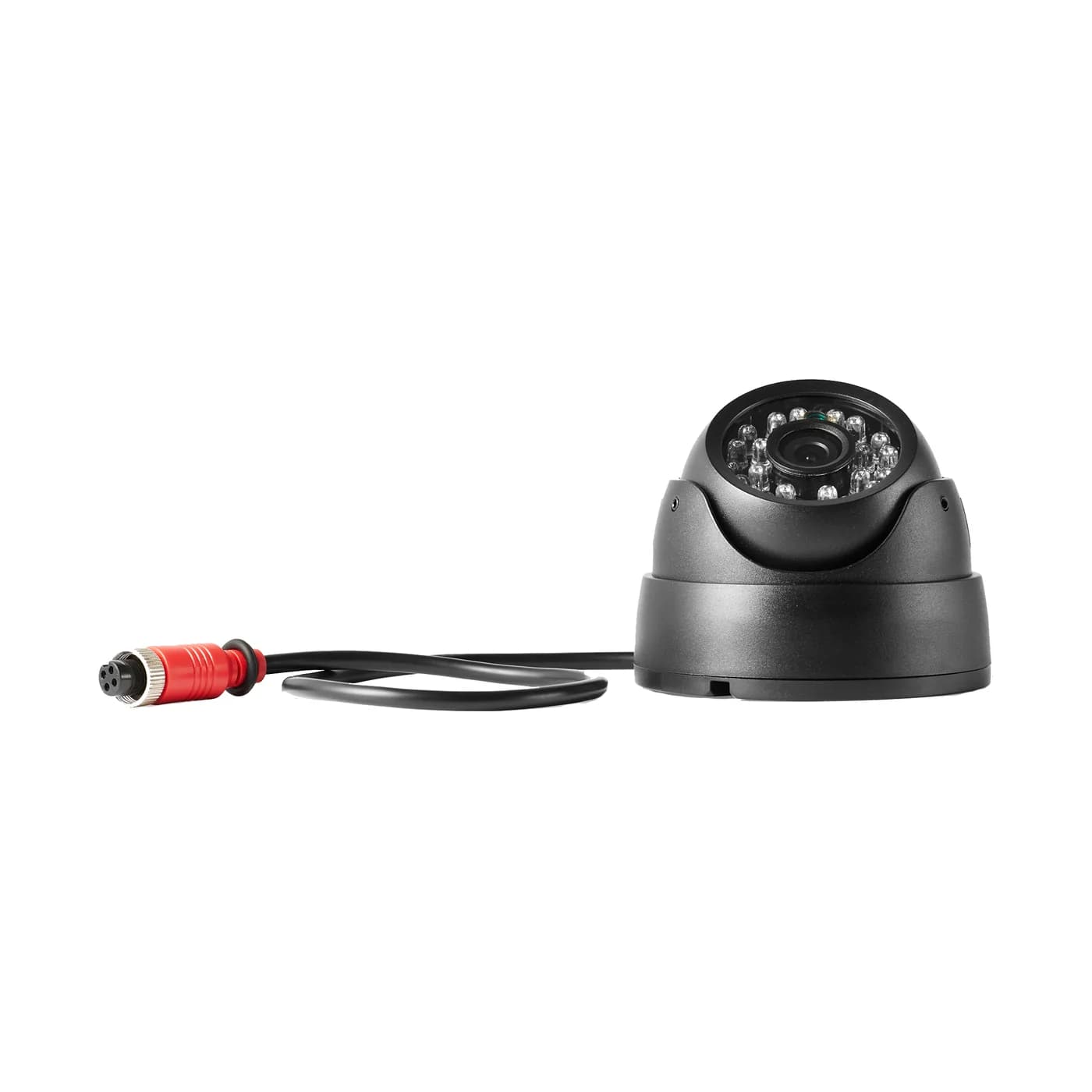

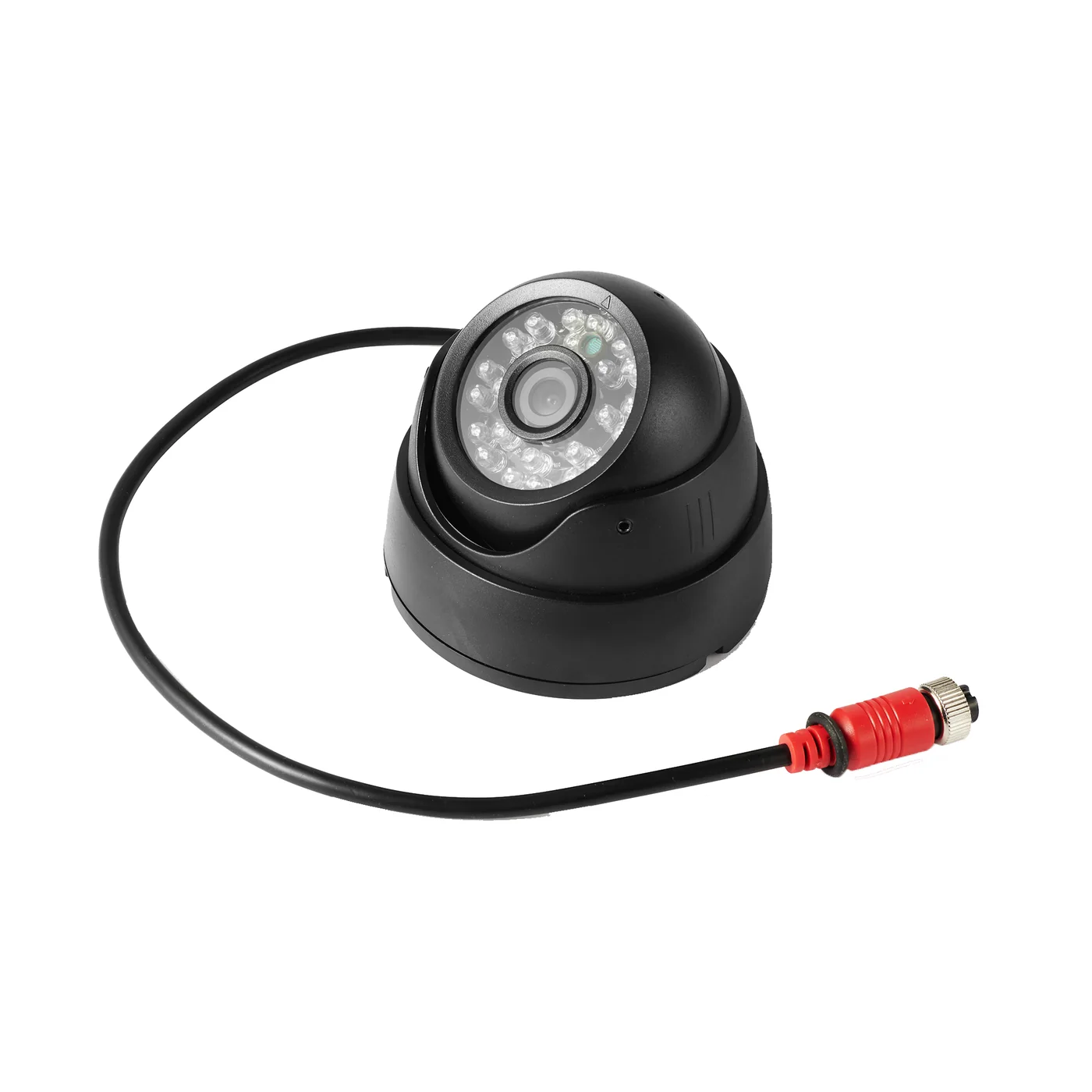

AHD003 Cabin Dome CameraAHD003 Cabin Dome Camera, view 2AHD003 Cabin Dome Camera, view 3AHD003 Cabin Dome Camera, view 4

MDVR cameras, model AHD003

AHD003 Cabin Dome Camera

Infrared dome camera for the cabin or passenger area, for MDVR systems

The AHD003 is an infrared dome camera for the inside of a vehicle. Mounted on the ceiling or a bulkhead, it gives an MDVR a view of the driver's area, the aisle or the doors, and its ring of infrared LEDs lights the scene at night. It connects to the recorder with an aviation connector and runs no AI.

Cameras
1
Ask on WhatsApp

Prices depend on volume and configuration. Samples available for evaluation.

AHD003 at a glance

  • Inside view for an MDVR

    Covers the driver's area, the aisle or the doors as one channel of the recorder.

  • Infrared night vision

    A ring of infrared LEDs lights the scene in darkness.

  • Aviation connector

    One locking cable carries video and power from the recorder.

Specifications

AHD003 Cabin Dome Camera. Specifications can change with firmware and configuration; confirm with sales for your order.

Downloads

Video

TypeInterior dome camera (AHD)
Night visionInfrared LED ring

AI safety

ADAS, DMS and BSDNot available on this model

Power & build

MountingCeiling or bulkhead; adjustable inside the dome
PowerFrom the MDVR, through the camera cable

Interfaces

ConnectorAviation connector

The AHD003 is an interior dome camera for vehicles that record through an MDVR. Fitted to the ceiling or a bulkhead, it covers the driver's area, the passenger aisle or a door, and the recorder stores its video as one channel alongside the others.

What it is for

  • Aisle and seats. On buses, coaches and school buses, a dome camera above the aisle records boarding, seating and incidents inside the vehicle.
  • Doors and cargo. Mounted near a door or in a cargo area, it records loading, unloading and access.
  • Night routes. A ring of infrared LEDs around the lens lights the scene in darkness.

Its footage carries the same time and event markers as the recorder's other cameras, and the GPS position when the recorder has GPS.

Installation

  • One locking aviation connector carries video and power from the recorder.
  • Fix the dome base to a flat surface, then tilt the camera inside the dome to frame the area you need.
  • Choose a mounting point away from direct glare from windows and interior lights.
  • The cable differs by recorder, so state your MDVR model when you order.

This is a plain camera: it does not run ADAS or fatigue detection. For forward-collision and lane alerts, see the ADAS Camera; for fatigue alerts, see the DSM Camera. We send the resolution and lens angle of the current version with your quote.

Fleet setups that use the AHD003

AHD003 questions

What is the AHD003 used for?

It is an interior dome camera for MDVR systems. It records the driver's area, the passenger aisle, the doors or a cargo space as one channel of the recorder.

Does the AHD003 detect fatigue or give collision alerts?

No. It is a plain interior camera. For collision and lane alerts use the [ADAS Camera](/product/adas-camera/), and for fatigue alerts use the [DSM Camera](/product/dsm-camera/).

How does the AHD003 connect?

With one locking aviation connector that carries video and power from the MDVR. The cable differs by recorder, so state your MDVR model when you order.
