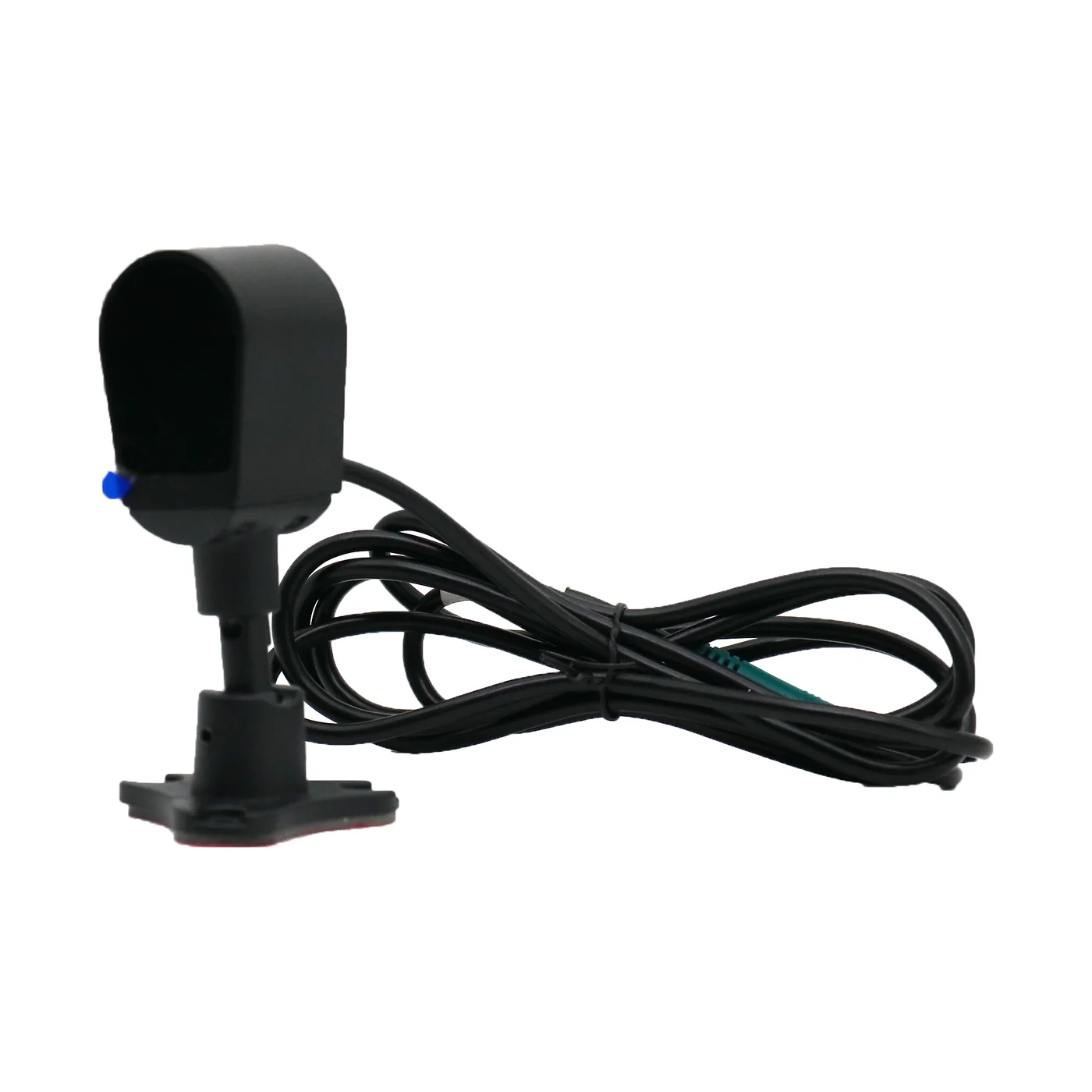

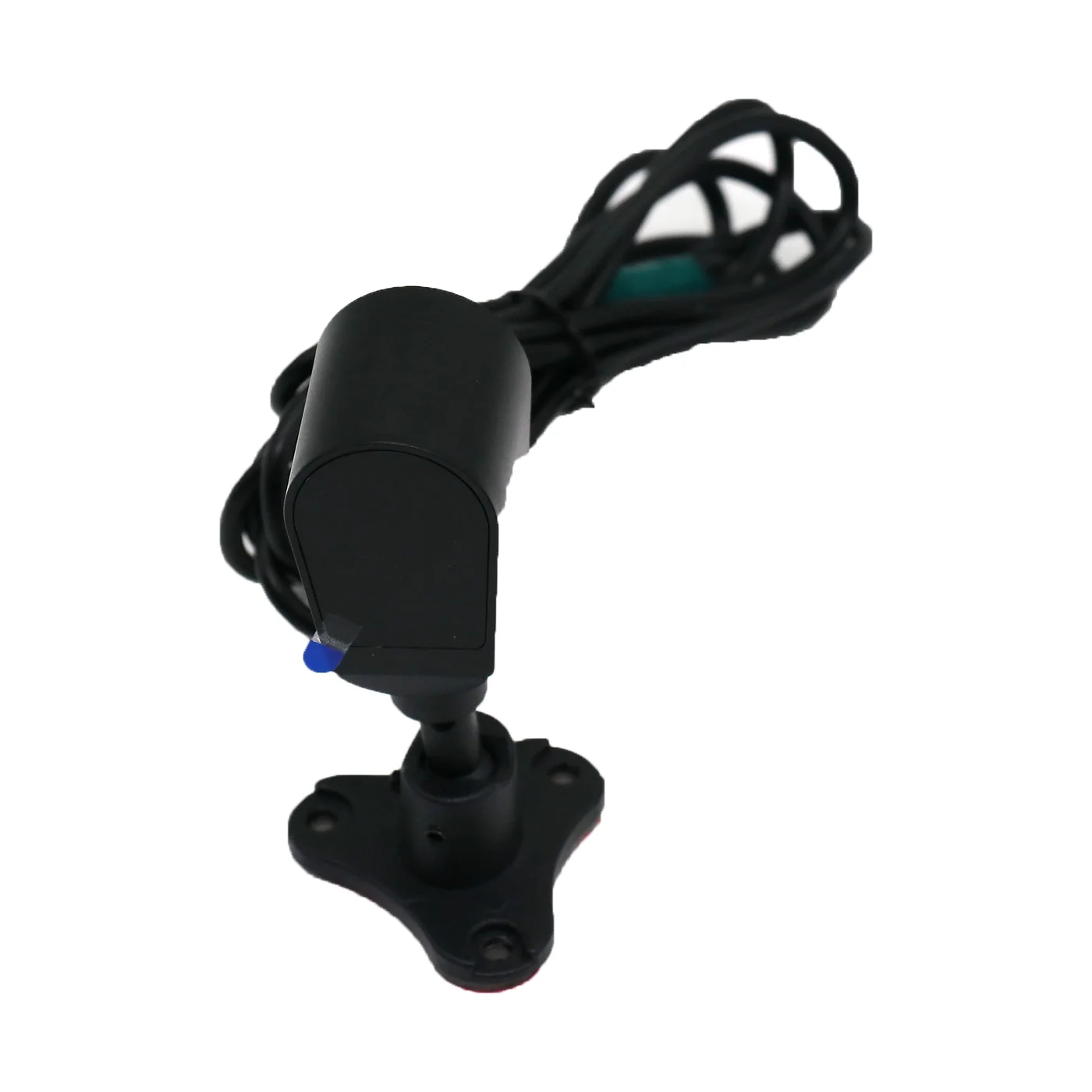

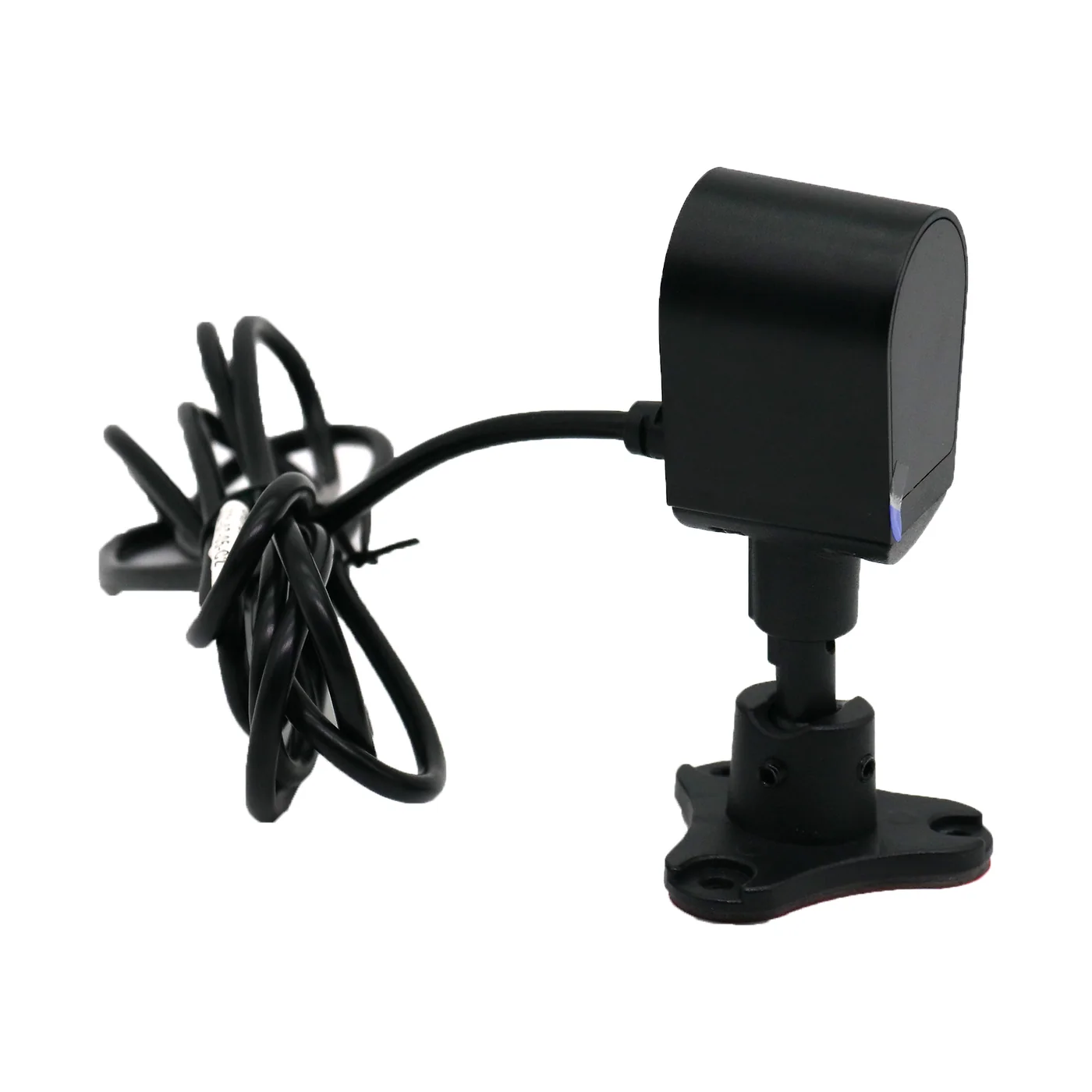

AHD005 DSM CameraAHD005 DSM Camera, view 2AHD005 DSM Camera, view 3

MDVR cameras, model AHD005

AHD005 DSM Camera

1080p infrared driver camera for fatigue, distraction and helmets

The AHD005 is a driver-facing DSM camera that records 1920 × 1080 through a 170° lens with infrared night vision. It detects drowsiness, yawning, closed eyes and distraction, and checks whether a hat or helmet is worn. It runs on 12–24 V from -20 °C to 70 °C and connects to an MDVR.

Video
1080p
Cameras
1
AI functions
DMS
Ask on WhatsApp

Prices depend on volume and configuration. Samples available for evaluation.

AHD005 at a glance

  • Fatigue and distraction

    Detects drowsiness, yawning, closed eyes and the driver looking away from the road.

  • Hat and helmet detection

    Checks whether headgear is worn, for site-safety and cab rules.

  • Infrared, 170° lens

    1920 × 1080 infrared imaging keeps detection working at night.

Specifications

AHD005 DSM Camera. Specifications can change with firmware and configuration; confirm with sales for your order.

Downloads

Video

Resolution1920 × 1080
Sensor1/2.9-inch CMOS
Lens170°
Night visionInfrared

AI safety

Fatigue detectionDrowsiness, yawning, closed eyes
Distraction detectionLooking away from the road
Hat and helmet detectionWorn or not worn

Power & build

Input voltage12–24 V
Operating temperature-20 °C to 70 °C

The AHD005 is a driver status monitoring (DSM) camera. It faces the driver, analyses the face and head position, and sounds an alert when it detects fatigue or distraction. Infrared light keeps it working at night and through changing light in the cab.

What it detects

  • Fatigue. Drowsiness, yawning and closed eyes.
  • Distraction. The driver looking away from the road.
  • Hat or helmet. Whether the driver is wearing one, for sites where headgear is required and cabs where it is not allowed.

Alerts sound in the cab, and the recorder logs each one with its video.

Installation

  • Mount on the dashboard or the A-pillar, facing the driver, so the face is in view without blocking the road.
  • The 170° lens frames the driver from either position.
  • The cable and connector differ by recorder, so state your MDVR model when you order.

For a fatigue-only camera, see the DSM Camera. For a plain cabin view without AI, see the AHD003 dome camera.

Fleet setups that use the AHD005

AHD005 questions

What does the AHD005 detect?

Drowsiness, yawning, closed eyes, the driver looking away from the road, and whether a hat or helmet is worn.

Does the AHD005 work at night?

Yes. It uses infrared light, so detection works in darkness.

What is the difference between the AHD005 and the DSM Camera?

Both are driver-facing 1080p infrared cameras. The DSM Camera detects closed eyes and head nodding; the AHD005 also detects yawning, distraction and whether a hat or helmet is worn.

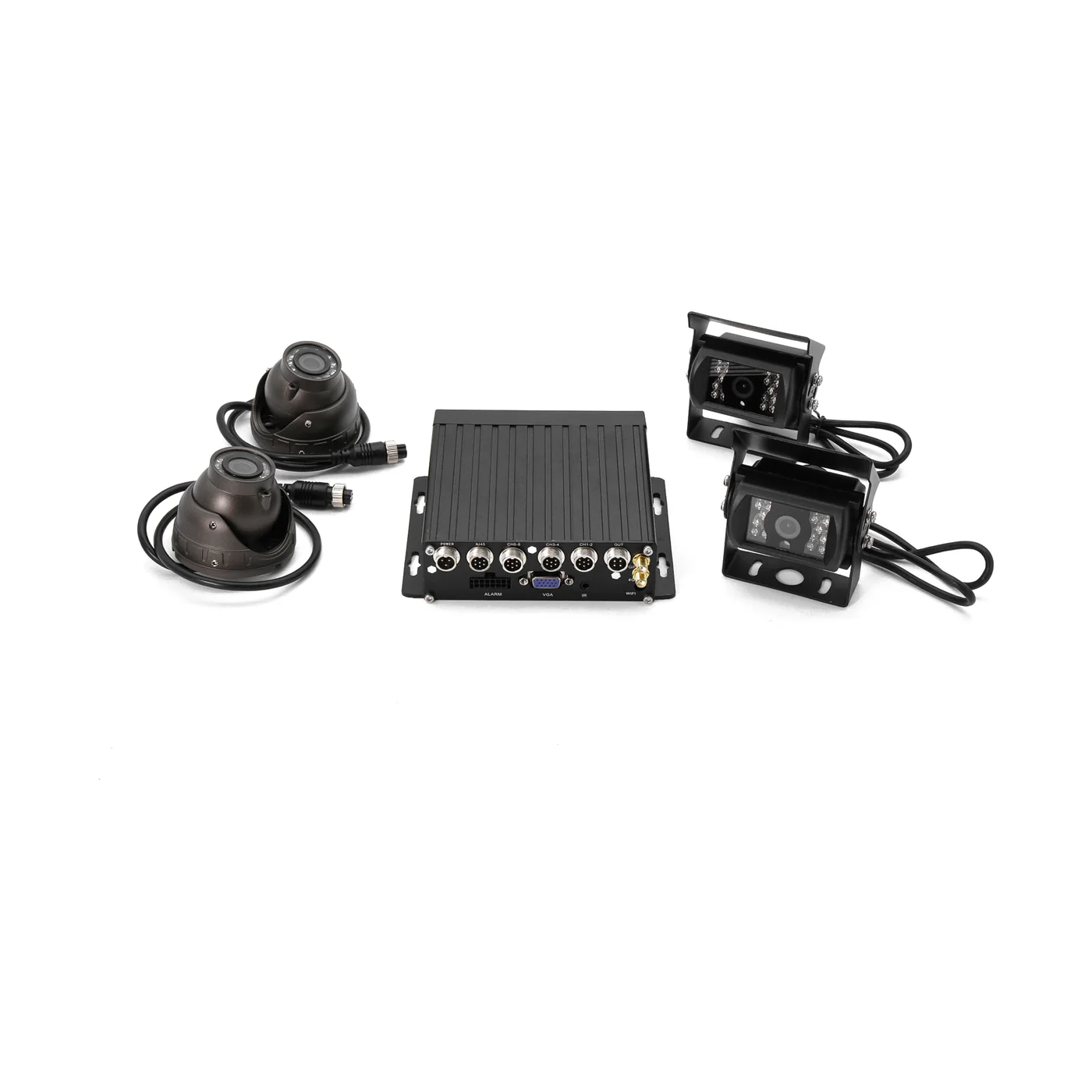

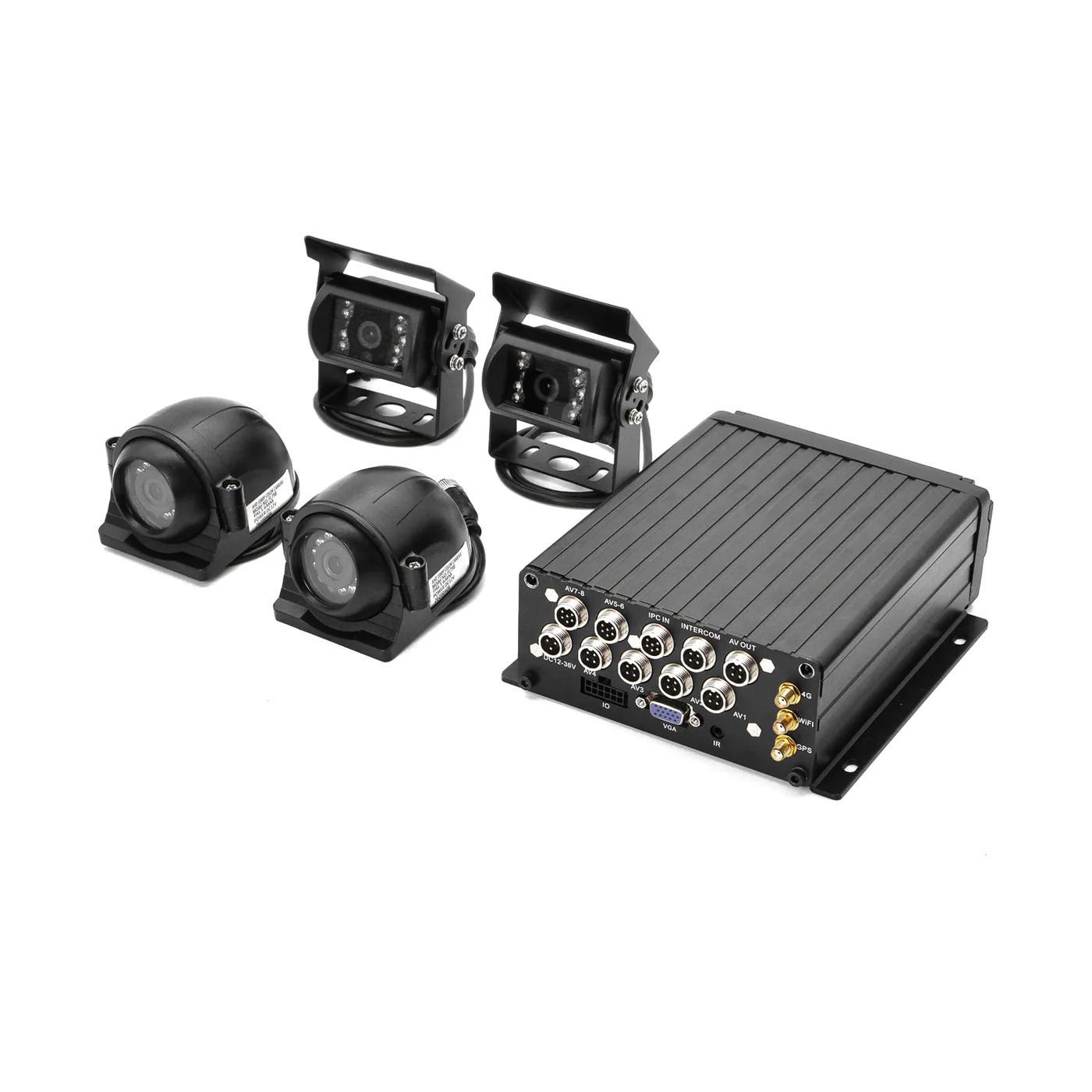

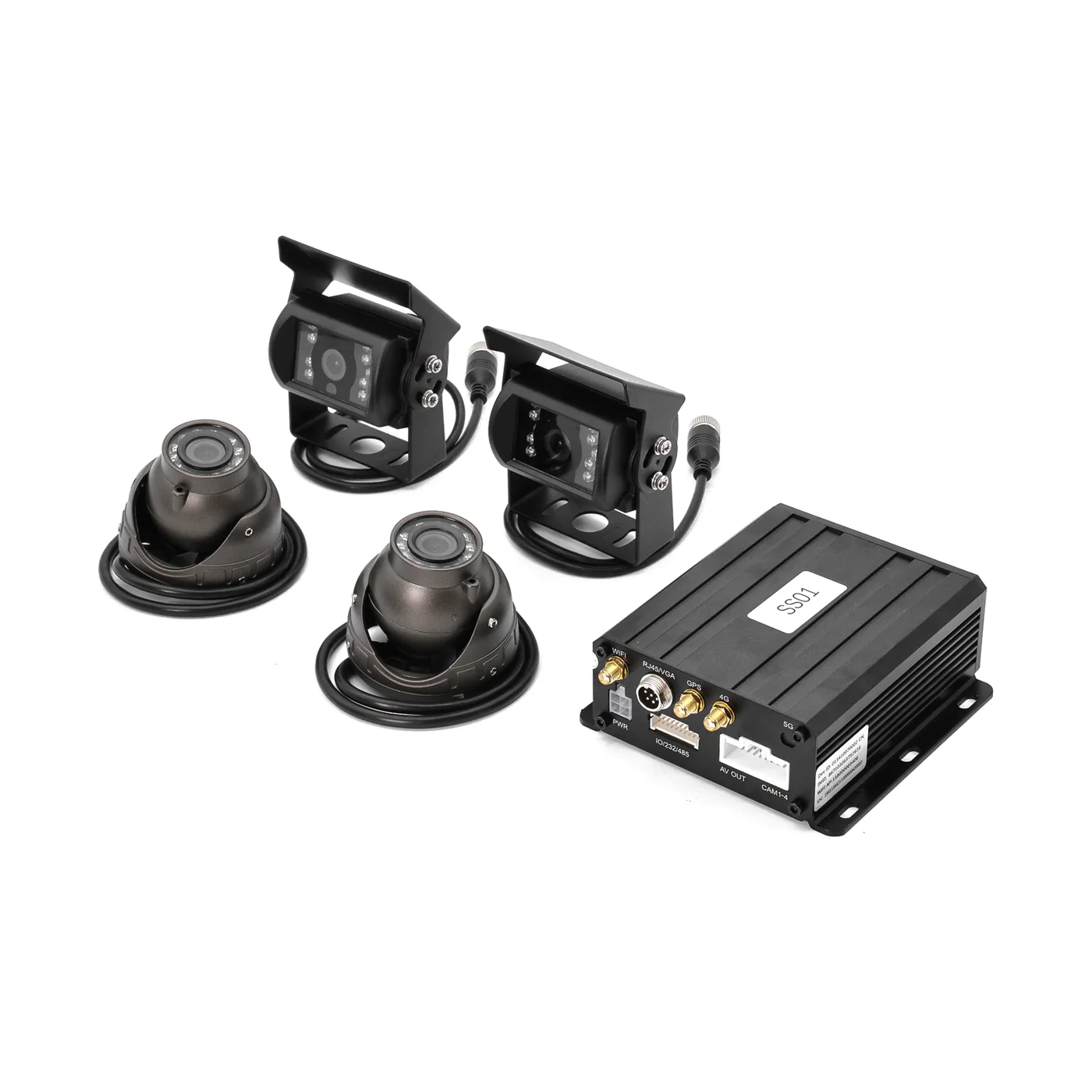

Recorders it connects to
